External catalogs in StarRocks

Dmitry Bulgakov

Collapse content Expand content

Contents

Overview
Limitations and requirements
- Ozone limitation when writing to external Hive tables
Example of use
Example data model
Demonstration sequence
Required connections
Step 1. Create a native StarRocks table
Step 2. Create a Hive table
Step 3. Create an Iceberg table
Step 4. Add the Hive table to StarRocks
- Verify the Hive catalog
- Verify the Hive database and table
Step 5. Add the Iceberg table to StarRocks
- Verify the Iceberg catalog and namespace
Step 6. Join data from all three tables

Overview

StarRocks catalogs provide a mechanism for accessing data stored in StarRocks and external data sources.

An internal catalog manages data stored in StarRocks. Every StarRocks cluster has a single internal catalog named default_catalog. Tables created directly in StarRocks belong to this catalog.

External catalogs allow StarRocks to read data directly from external systems without first loading or migrating that data into StarRocks. StarRocks supports external catalogs for Apache Hive, Apache Iceberg, Apache Hudi, Delta Lake, JDBC-compatible data sources, and other systems. A single external catalog can provide access to several data lake table formats.

This approach allows a user to run queries from a single StarRocks entry point to different storage systems and to aggregate data from different external sources with native StarRocks data.

Limitations and requirements

When StarRocks writes data to an external Hive table, the files are first written to the default staging directory /tmp/starrocks and then moved to the table location under /apps/hive/warehouse/*. To enable writes to external Hive tables, set the following session variable:

SET GLOBAL ENABLE_WRITE_HIVE_EXTERNAL_TABLE = true;

Ozone limitation when writing to external Hive tables

When using Ozone, writing to external tables fails if the staging and Hive warehouse directories are located in different buckets. For example, ofs://adho/tmp/starrocks and ofs://adho/apps/hive/warehouse belong to different Ozone buckets, resulting in the Cannot rename a key to a different bucket error.

Set the staging directory for the session to a path within the same Ozone bucket, for example ofs://adho/apps/hive/tmp/starrocks. This allows StarRocks to move the files within the same Ozone bucket.

Example of use

The example below demonstrates a query which joins:

a native StarRocks table stored in the StarRocks shared-data layer;
a Hive table whose metadata is managed by Hive Metastore;
an Iceberg table whose metadata is managed by an Iceberg catalog.

The example assumes a three-host ADH cluster with the following services deployed.

Components distribution in this example

Host

Service

Component

Host 1

Core configuration

Configuration server

HDFS

HDFS Client

HDFS DataNode

HDFS JournalNode

HDFS NameNode

HDFS ZKFC

Hive

Hive Client

Hive Metastore

Hive Tez

Spark3

Spark3 Client

Spark3 History Server

StarRocks

StarRocks FE

StarRocks CN

YARN

MapReduce History Server

YARN Client

YARN NodeManager

Zookeeper

Zookeeper Server

Host 2

HDFS

HDFS Client

HDFS DataNode

HDFS HttpFS server

HDFS JournalNode

Hive

Hive Client

Hive HiveServer2

Hive Metastore

Hive Tez

Hive Tez UI

Spark3

Spark3 Client

Spark3 Livy Server

StarRocks

StarRocks FE

StarRocks CN

YARN

YARN Client

YARN NodeManager

YARN ResourceManager

Zookeeper

Zookeeper Server

Host 3

ADPG

Arenadata PostgreSQL

HDFS

HDFS Client

HDFS DataNode

HDFS JournalNode

HDFS NameNode

HDFS ZKFC

Hive

Hive Client

Hive Metastore

Hive Tez

Spark3

Spark3 Client

Spark3 Connect

StarRocks

StarRocks FE

StarRocks CN

YARN

YARN Client

YARN NodeManager

YARN Timeline Server

Zookeeper

Zookeeper Server

The following assumptions are true for an ADH installation out of the box:

If installed, HDFS is used as the shared-data storage for StarRocks.
Hive Metastore is configured to be available to StarRocks. StarRocks Frontend (FE) and Compute Nodes (CN) can access the HDFS paths returned by Hive Metastore.
The default Spark catalog, spark_catalog, is configured to support Iceberg tables.

In this demonstration, DBeaver is used to connect to database systems.

Example data model

This example uses three tables representing a simple sales dataset.

Table

Type

Purpose

orders

StarRocks

Contains orders and references a customer and a product

customers

Hive

Contains customer information

products

Iceberg

Contains product information

The tables are related as follows:

orders.customer_id → customers.customer_id
orders.product_id → products.product_id

The final query joins the three tables and returns order, customer, and product information.

Demonstration sequence

The demonstration consists of the following steps:

Create a native StarRocks orders table using DBeaver.
Create a Hive customers table using DBeaver.
Create an Iceberg products table using Spark3 and the preconfigured spark_catalog.
Add the Hive catalog as external in StarRocks.
Add the Iceberg catalog as external in StarRocks.
Query and join all three tables from DBeaver through StarRocks.

Required connections

Before starting the demonstration, verify that you have the required connections.

StarRocks FE. To connect, you can take the JDBC string in ADCM under the Services → StarRocks → Info tab.

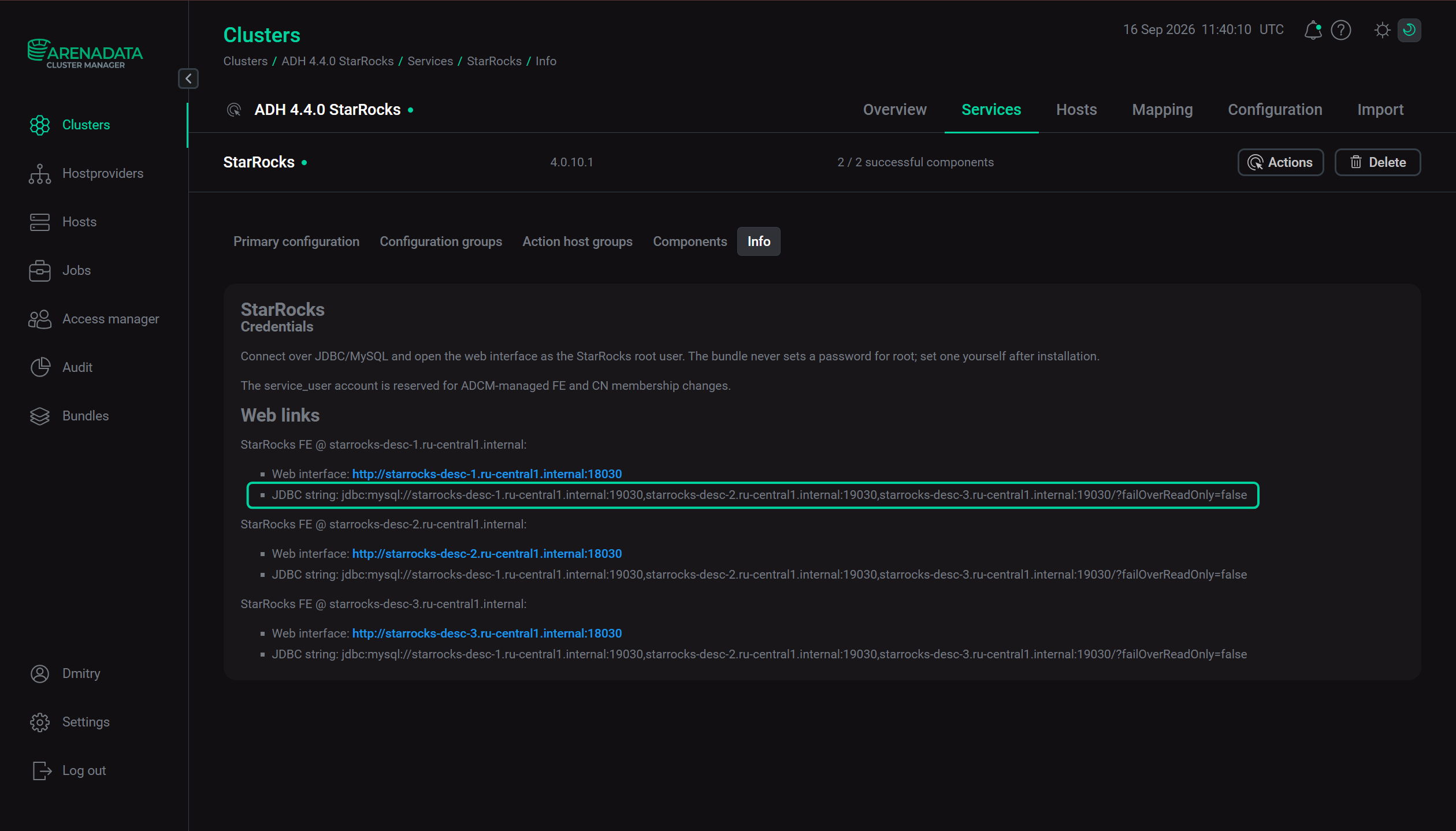

StarRocks info tab

StarRocks info tab

Use it to connect to StarRocks in DBeaver.

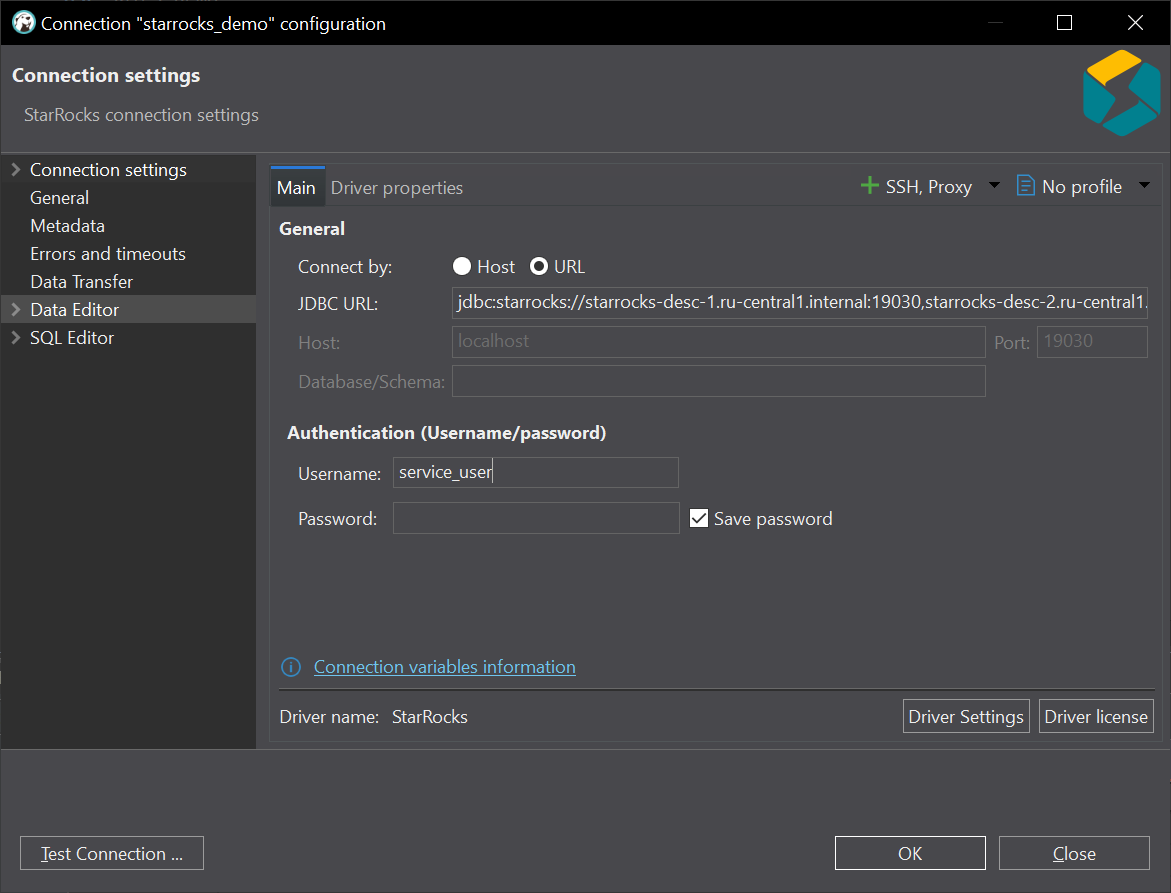

StarRocks connection in DBeaver

StarRocks connection in DBeaver
HiveServer2 connection. To connect, you can take the JDBC string in ADCM under the Services → Hive → Info tab.

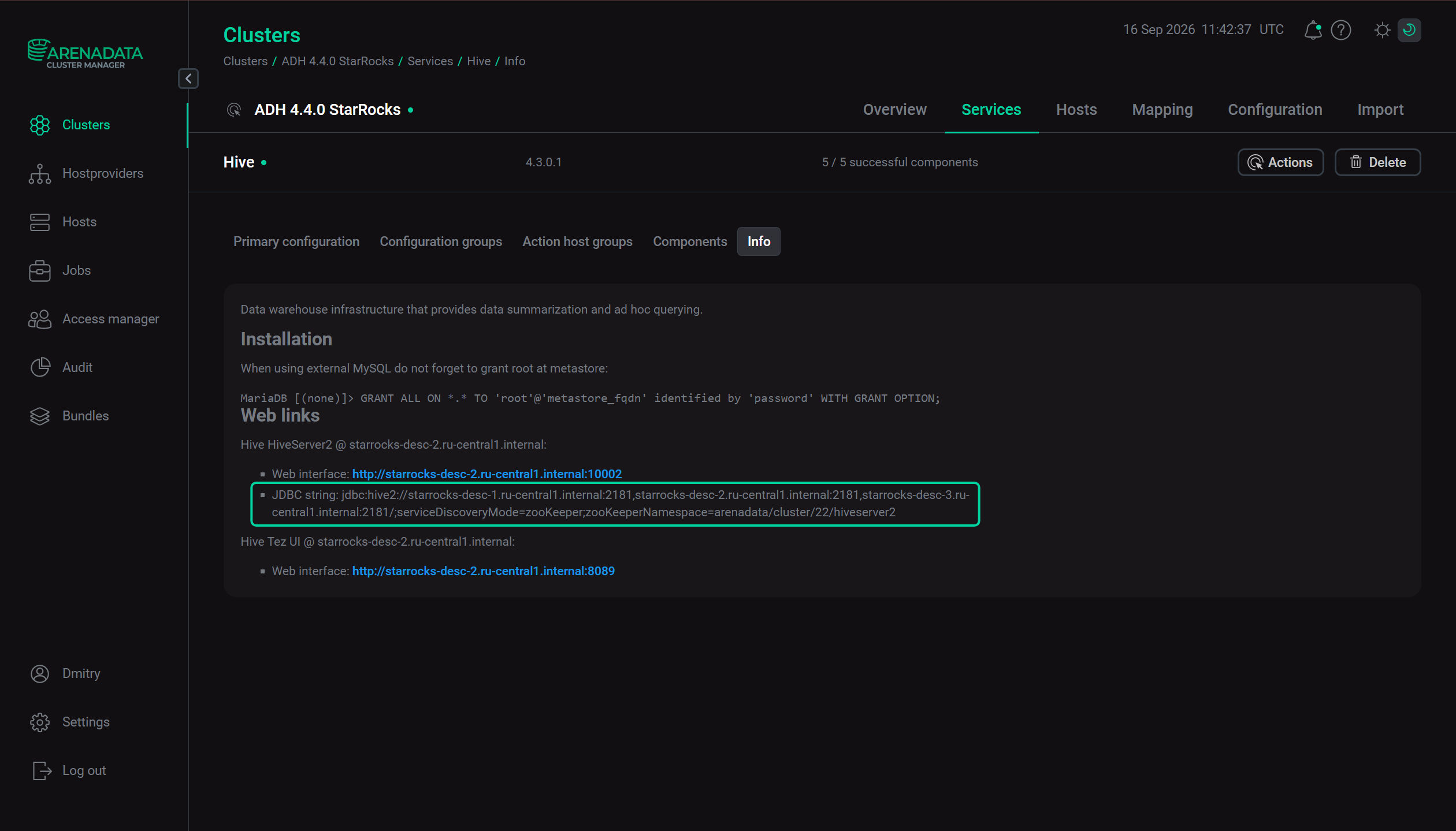

Hive info tab

Hive info tab

Use it to connect to Hive in DBeaver.

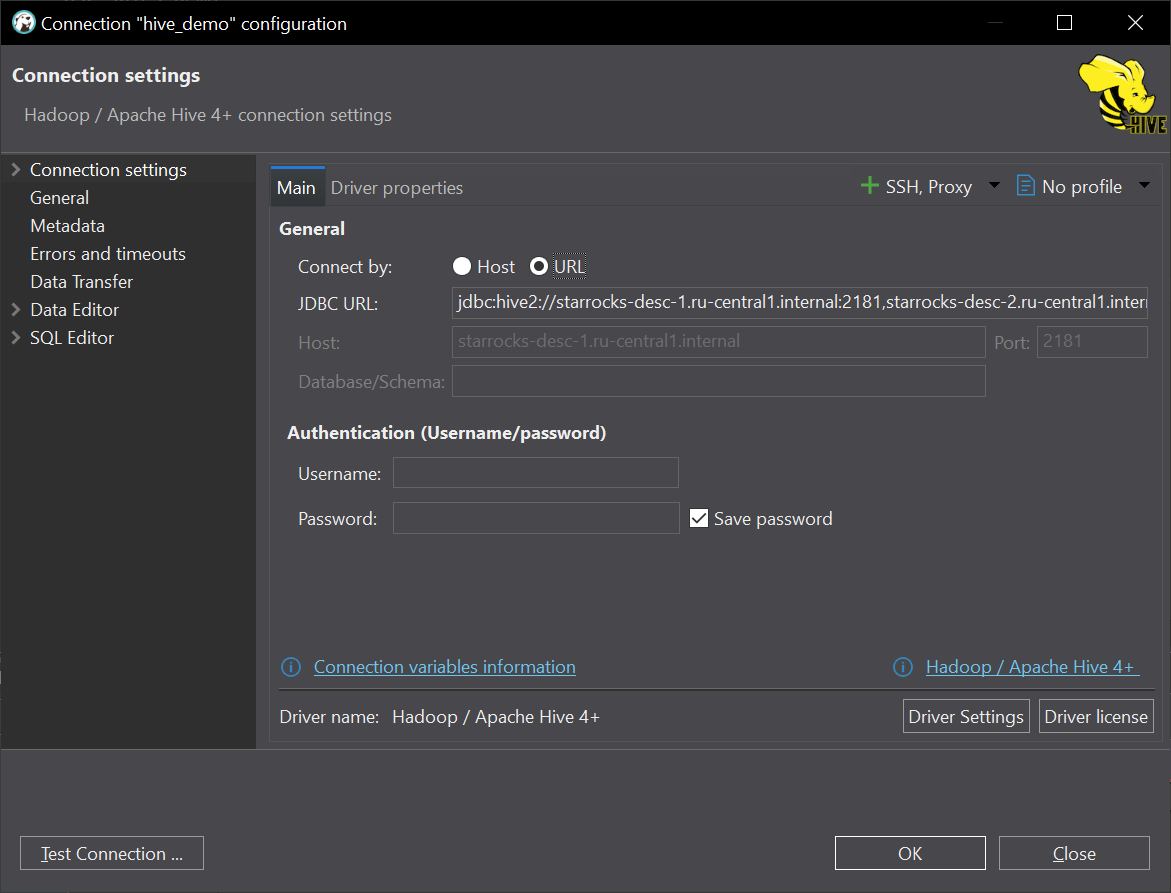

Hive connection in DBeaver

Hive connection in DBeaver
Hive Metastore connection via Spark client. Spark is used only to create and populate the Iceberg table.

Step 1. Create a native StarRocks table

Use DBeaver to connect to StarRocks.

First, create a database in the internal catalog:

CREATE DATABASE IF NOT EXISTS starrocks_sales;

Switch to the database:
```
USE starrocks_sales;
```

Create the orders table:

CREATE TABLE orders (
        order_id BIGINT,
        customer_id BIGINT,
        product_id BIGINT,
        order_date DATE,
        quantity INT
)
PRIMARY KEY (order_id)
DISTRIBUTED BY HASH (order_id)
PROPERTIES (
        "replication_num" = "3"
);

Insert sample data:

INSERT INTO
        orders (
                order_id,
                customer_id,
                product_id,
                order_date,
                quantity
        )
VALUES
        (1001, 1, 101, '2026-09-01', 2),
        (1002, 2, 102, '2026-09-02', 1),
        (1003, 1, 103, '2026-09-03', 5),
        (1004, 3, 101, '2026-09-04', 3);

Verify the table:
```
SELECT *
FROM starrocks_sales.orders
ORDER BY order_id;
```
The table is stored and managed by StarRocks and therefore belongs to the internal default_catalog.

You can verify the table definition:
```
SHOW CREATE TABLE starrocks_sales.orders;
```

Step 2. Create a Hive table

A Hive table is created separately from StarRocks.

Use DBeaver to connect to HiveServer2. Do not use StarRocks connection or Spark to create a Hive table.

Create a Hive database:

CREATE DATABASE IF NOT EXISTS hive_sales;

Switch to the database:
```
USE hive_sales;
```

Create the customers table:

CREATE TABLE customers (
        customer_id BIGINT,
        customer_name STRING,
        city STRING
) STORED AS PARQUET;

Insert sample data:

INSERT INTO
        customers (customer_id, customer_name, city)
VALUES
        (1, 'Alice Brown', 'Moscow'),
        (2, 'Bob Smith', 'Saint Petersburg'),
        (3, 'Carol White', 'Kazan');

Verify the table from the Hive connection in DBeaver:
```
SELECT *
FROM customers
ORDER BY customer_id;
```

Step 3. Create an Iceberg table

An Iceberg table is created using Spark3.

Start a Spark3 SQL session on one of the cluster hosts with Spark3 client installed:
```
$ spark3-sql
```

Create the iceberg_sales namespace:

CREATE NAMESPACE IF NOT EXISTS iceberg_sales;

Verify the namespace:
```
SHOW NAMESPACES;
```

Create the products Iceberg table:

CREATE TABLE iceberg_sales.products (
        product_id BIGINT,
        product_name STRING,
        category STRING,
        price DECIMAL(10, 2)
) USING iceberg;

Insert sample data:

INSERT INTO
        iceberg_sales.products (product_id, product_name, category, price)
VALUES
        (101, 'Laptop', 'Electronics', 1200.00),
        (102, 'Keyboard', 'Electronics', 80.00),
        (103, 'Office Chair', 'Furniture', 250.00);

Verify the table:

SELECT *
FROM iceberg_sales.products
ORDER BY product_id;

You can also inspect the table metadata from Spark:

DESCRIBE TABLE iceberg_sales.products;

At this point, the environment contains three independent tables:

starrocks_sales.orders;
hive_sales.customers;
iceberg_sales.products.

Step 4. Add the Hive table to StarRocks

The next step is to make the Hive table available to StarRocks through an external catalog.

Connect to StarRocks in DBeaver and execute the following statement:

CREATE EXTERNAL CATALOG hive_catalog PROPERTIES (
        "type" = "hive", (1)
        "hive.metastore.type" = "hive", (2)
        "hive.metastore.uris" = "thrift://<hive-metastore-host>:<hive-metastore-thrift-port>" (3)
);

1	The `type` property identifies the external data source as Hive.
2	The `hive.metastore.type` property specifies that the metadata service is Hive Metastore.
3	The `hive.metastore.uris` property specifies the Hive Metastore endpoint. StarRocks uses this endpoint to obtain database, table, schema, and storage-location metadata.

In this demonstration, the cluster has three Hive Metastore endpoints deployed. All three are populated in hive.metastore.uris:

CREATE EXTERNAL CATALOG hive_catalog COMMENT "Hive external catalog" PROPERTIES (
        "type" = "hive",
        "hive.metastore.type" = "hive",
        "hive.metastore.uris" = "thrift://starrocks-desc-1.ru-central1.internal:9083,thrift://starrocks-desc-2.ru-central1.internal:9083,thrift://starrocks-desc-3.ru-central1.internal:9083"
);

Verify the Hive catalog

List the catalogs:
```
SHOW CATALOGS;
```
The result should contain the internal catalog and the newly created Hive catalog. SHOW CATALOGS reports default_catalog as Internal and external catalogs according to their configured type.
Check the catalog configuration:
```
SHOW CREATE CATALOG hive_catalog;
```
SHOW CREATE CATALOG displays the statement used to create the catalog.

Verify the Hive database and table

List the databases available through the Hive catalog:
```
SHOW DATABASES FROM hive_catalog;
```
The hive_sales database should be present.
List its tables:
```
SHOW TABLES FROM hive_catalog.hive_sales;
```
The result should contain the customers table.

You can inspect its schema:

DESCRIBE hive_catalog.hive_sales.customers;

You can also query the table directly.

SELECT *
FROM hive_catalog.hive_sales.customers
ORDER BY customer_id;

Step 5. Add the Iceberg table to StarRocks

The Iceberg table is accessed through a separate StarRocks Iceberg catalog.

Because the Iceberg table in this example uses Hive Metastore for catalog metadata, configure the StarRocks catalog to use the Hive catalog implementation.

Execute the following statement from the StarRocks connection in DBeaver:

CREATE EXTERNAL CATALOG iceberg_catalog PROPERTIES (
        "type" = "iceberg", (1)
        "iceberg.catalog.type" = "hive", (2)
        "iceberg.catalog.hive.metastore.uris" = "thrift://<hive-metastore-host>:<hive-metastore-thrift-port>" (3)
);

1	The `type` property specifies Iceberg as the external data source.
2	The `iceberg.catalog.type` property specifies the Iceberg catalog implementation. In this example, it is `hive`.
3	The `iceberg.catalog.hive.metastore.uris` property specifies the Hive Metastore endpoint used to retrieve Iceberg metadata. StarRocks supports Iceberg catalogs backed by Hive Metastore.

In this demonstration, the cluster has three Hive Metastore endpoints deployed. All three are populated in iceberg.catalog.hive.metastore.uris in the SQL:

CREATE EXTERNAL CATALOG iceberg_catalog COMMENT "Iceberg external catalog" PROPERTIES (
        "type" = "iceberg",
        "iceberg.catalog.type" = "hive",
        "iceberg.catalog.hive.metastore.uris" = "thrift://starrocks-desc-1.ru-central1.internal:9083,thrift://starrocks-desc-2.ru-central1.internal:9083,thrift://starrocks-desc-3.ru-central1.internal:9083"
);

NOTE

The fact that Spark uses default spark_catalog does not mean that StarRocks must use the same catalog name. spark_catalog is the Spark-side catalog name. iceberg_catalog is the StarRocks-side external catalog name. Both can access the same Iceberg metadata as long as they are configured to use the same underlying catalog and storage.

Verify the Iceberg catalog and namespace

Verify the Iceberg catalog definition:
```
SHOW CREATE CATALOG iceberg_catalog;
```
List the databases available in the Iceberg catalog:
```
SHOW DATABASES FROM iceberg_catalog;
```
Result should include the iceberg_sales database.

Inspect the table:

DESCRIBE iceberg_catalog.iceberg_sales.products;

Query the Iceberg table directly:

SELECT *
FROM iceberg_catalog.iceberg_sales.products
ORDER BY product_id;

Now you can list all catalogs in StarRocks:
```
SHOW CATALOGS;
```
The result should include external catalogs:
```
default_catalog
hive_catalog
iceberg_catalog
```
Created catalogs can also be found in the System → catalogs section of StarRocks web UI.

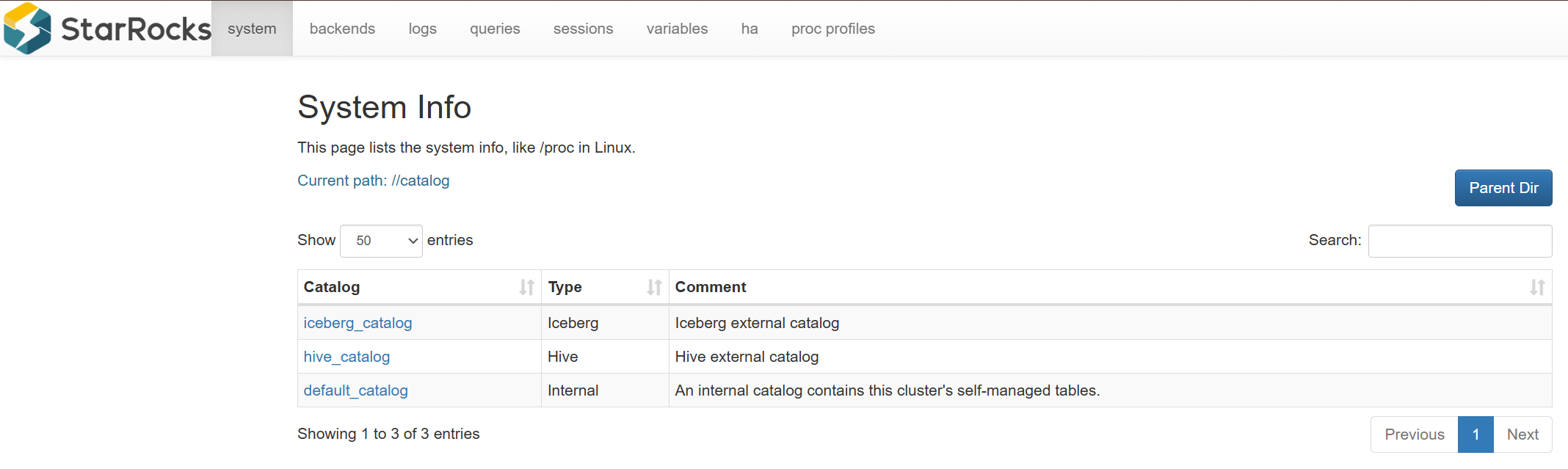

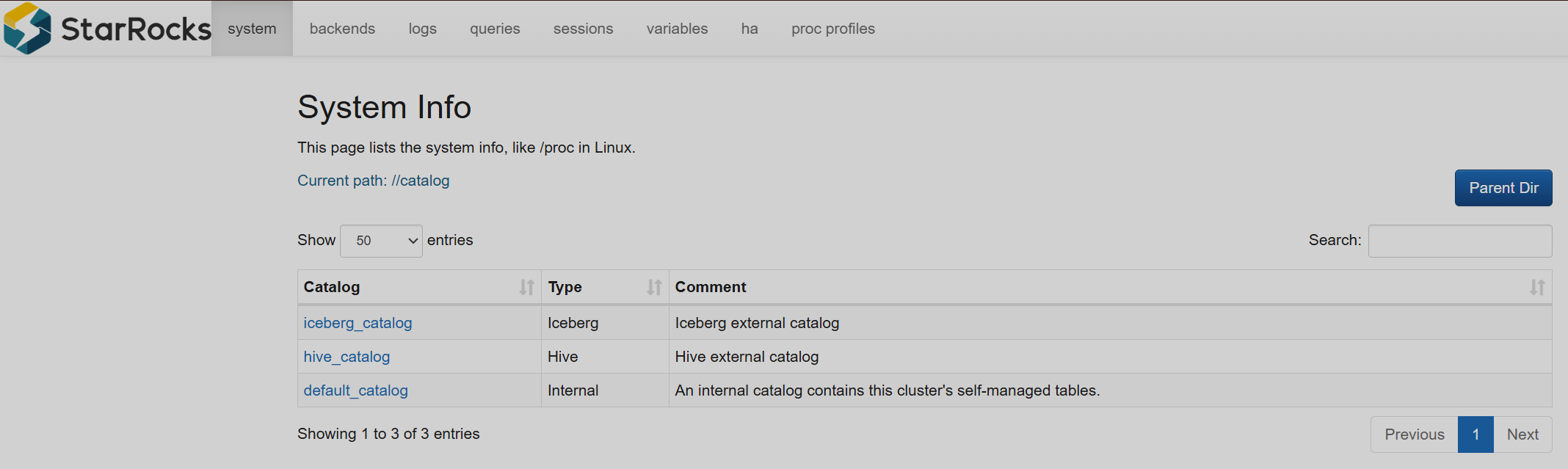

List of catalogs in web UI

List of catalogs in web UI

Step 6. Join data from all three tables

The three tables can be combined in a single query. In this example, the orders native StarRocks table provides the order data, while the customers Hive table and products Iceberg table provide customer and product attributes.

Catalog

Catalog type

Table

default_catalog

Internal StarRocks

starrocks_sales.orders

hive_catalog

External Hive

hive_sales.customers

iceberg_catalog

External Iceberg

iceberg_sales.products

Execute the following query from the StarRocks connection in DBeaver:

SELECT
        c.customer_id,
        c.customer_name,
        c.city,
        p.category,
        COUNT(DISTINCT o.order_id) AS order_count,
        SUM(o.quantity) AS total_quantity,
        SUM(o.quantity * p.price) AS total_amount,
        AVG(o.quantity * p.price) AS average_order_amount
FROM
        default_catalog.starrocks_sales.orders AS o
        JOIN hive_catalog.hive_sales.customers AS c ON o.customer_id = c.customer_id
        JOIN iceberg_catalog.iceberg_sales.products AS p ON o.product_id = p.product_id
GROUP BY
        c.customer_id,
        c.customer_name,
        c.city,
        p.category
ORDER BY
        total_amount DESC;

For the sample data, the result is similar to the following.

┌─Customer──────┬─City──────────────┬─Category────┬─Orders─┬─Quantity─┬─Total amount─┬─Average order──┐
│ Alice Brown   │ Moscow            │ Electronics │      1 │        2 │      2400.00 │        2400.00 │
│ Alice Brown   │ Moscow            │ Furniture   │      1 │        5 │      1250.00 │        1250.00 │
│ Bob Smith     │ Saint Petersburg  │ Electronics │      1 │        1 │        80.00 │          80.00 │
│ Carol White   │ Kazan             │ Electronics │      1 │        3 │      3600.00 │        3600.00 │
└───────────────┴───────────────────┴─────────────┴────────┴──────────┴──────────────┴────────────────┘

IMPORTANT

In this example, the same HDFS cluster is used by all three catalogs. But external catalogs do not have a limitation to reside in the same cluster, you can plug in systems deployed on other clusters as external catalogs as long as StarRocks can access them.

Found a mistake? Seleсt text and press Ctrl+Enter to report it
