Column masking in Hive via Ranger
Overview
Hive column masking is a Ranger feature that allows you to obfuscate sensitive data in query output. To use it, enable the Ranger Hive plugin. The example below shows how to enable column masking for a Hive table, and it is assumed that you have created a Hive table and filled it with data.
For this example, the following data is used:
name mass Sun 1989100000 Mercury 330 Venus 4867 Earth 5972 Mars 642 Jupiter 1898187 Saturn 568317 Uranus 86813 Neptune 102413
Masking policy
-
In the Ranger Admin web UI, select the Hive service of your cluster.
Hive service in Ranger
Hive service in Ranger -
Open the Masking tab and click Add New Policy.

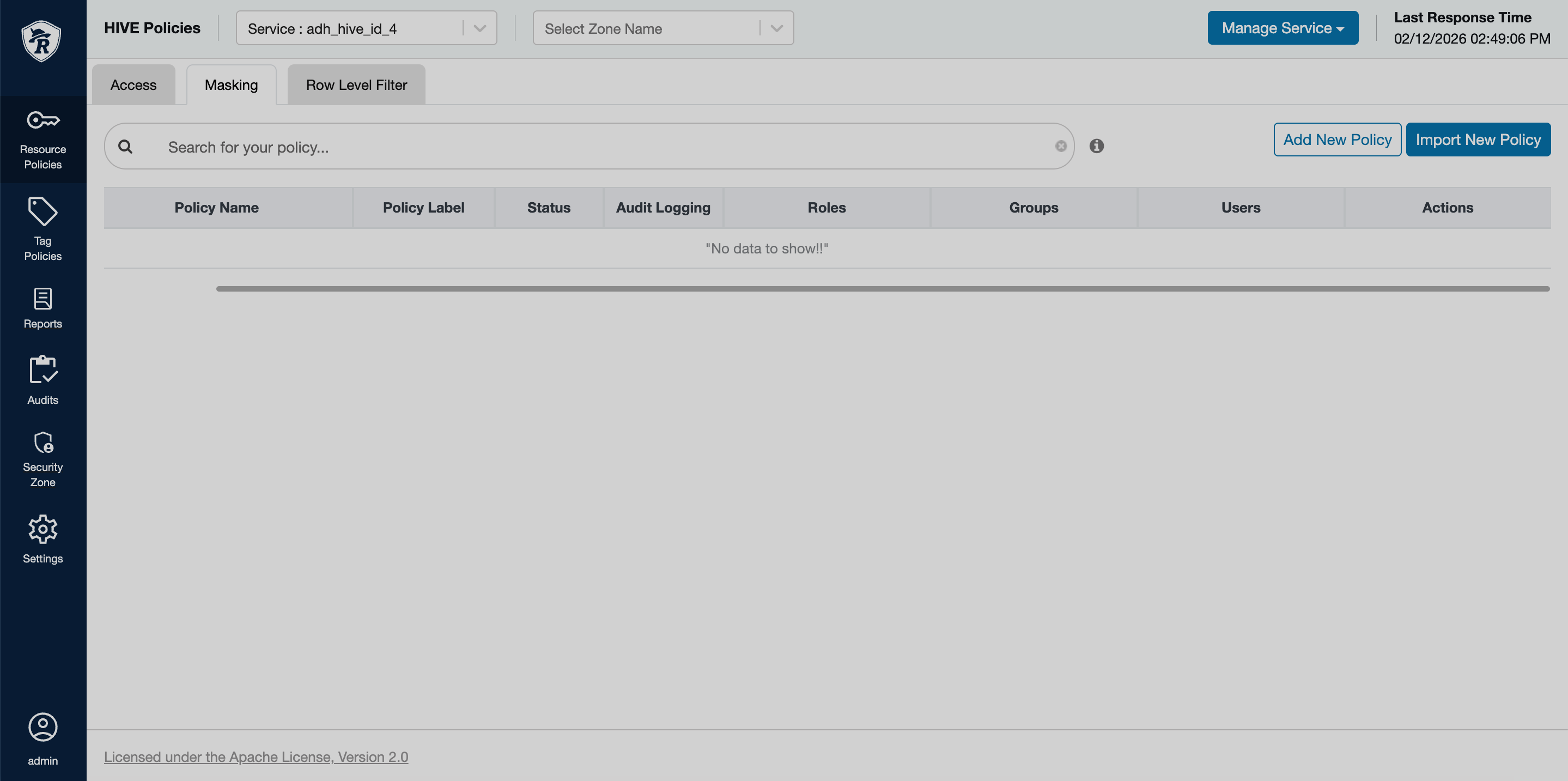

Masking tab in Ranger
Masking tab in Ranger -
Fill in the policy data and click Save.

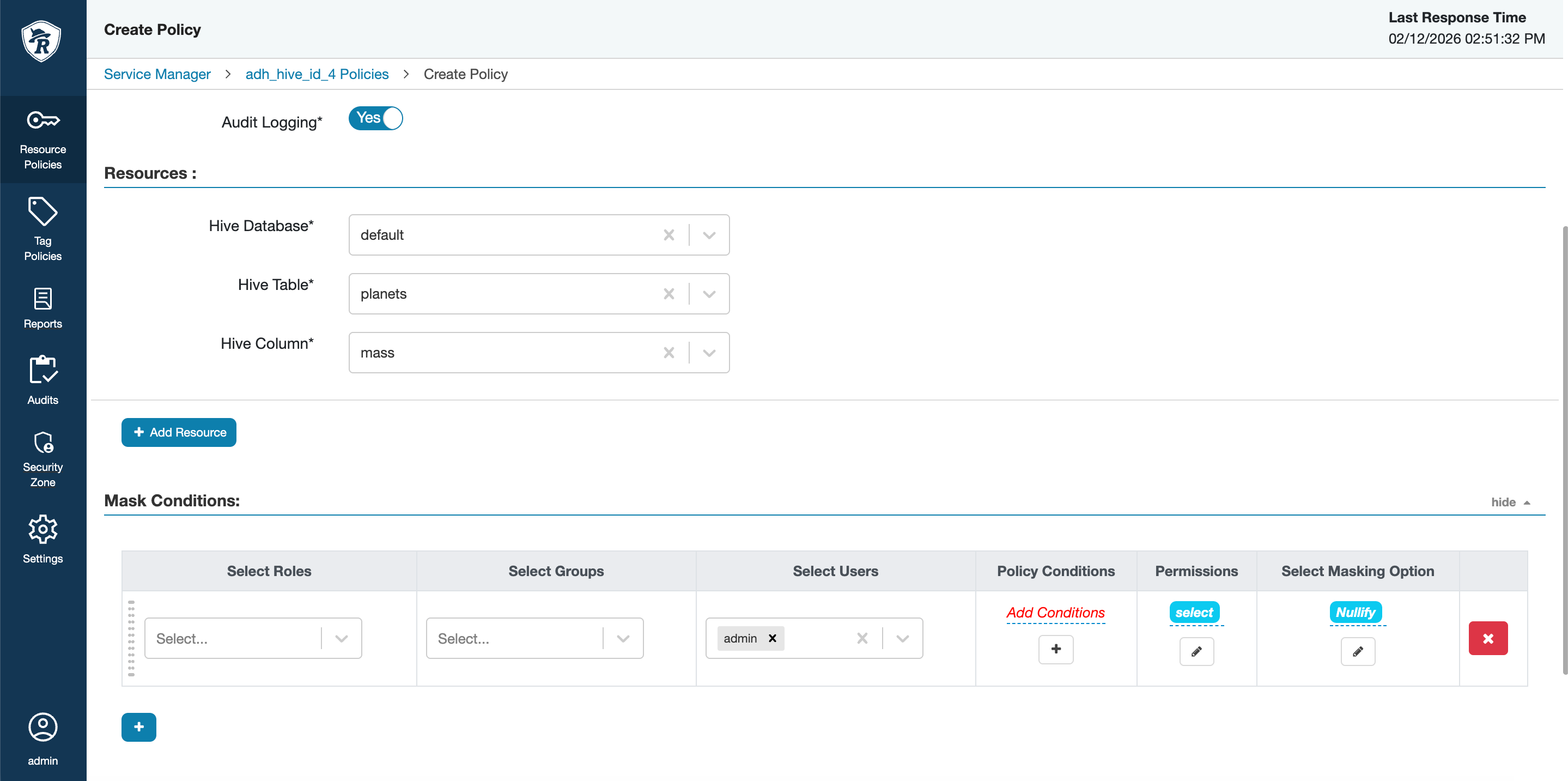

Masking policy parameters
Masking policy parametersThere are several masking options available:
-
Redact — for string data types, all numeric characters are masked as
n, all numeric characters — asx. ForINT, all characters are masked as1. For floating point data types, all values are masked asNULL. -
Partial mask: show last 4 — only last four characters are shown, while others are masked with the same rules as in Redact.
-
Partial mask: show first 4 — only first four characters are shown, while others are masked with the same rules as in Redact.
-
Hash — all characters are replaced with a hash of an entire cell value.
-
Nullify — all characters are replaced with
NULL. -
Unmasked (retain original value) — all characters remain as is.
-
Date: show only year — the day and month are defaulted to
01/01, while the year remain as in origin. -
Custom — allows you to specify a custom masking expression.
-
-
To test that the policy works correctly, query the database. In this example, HUE is used.

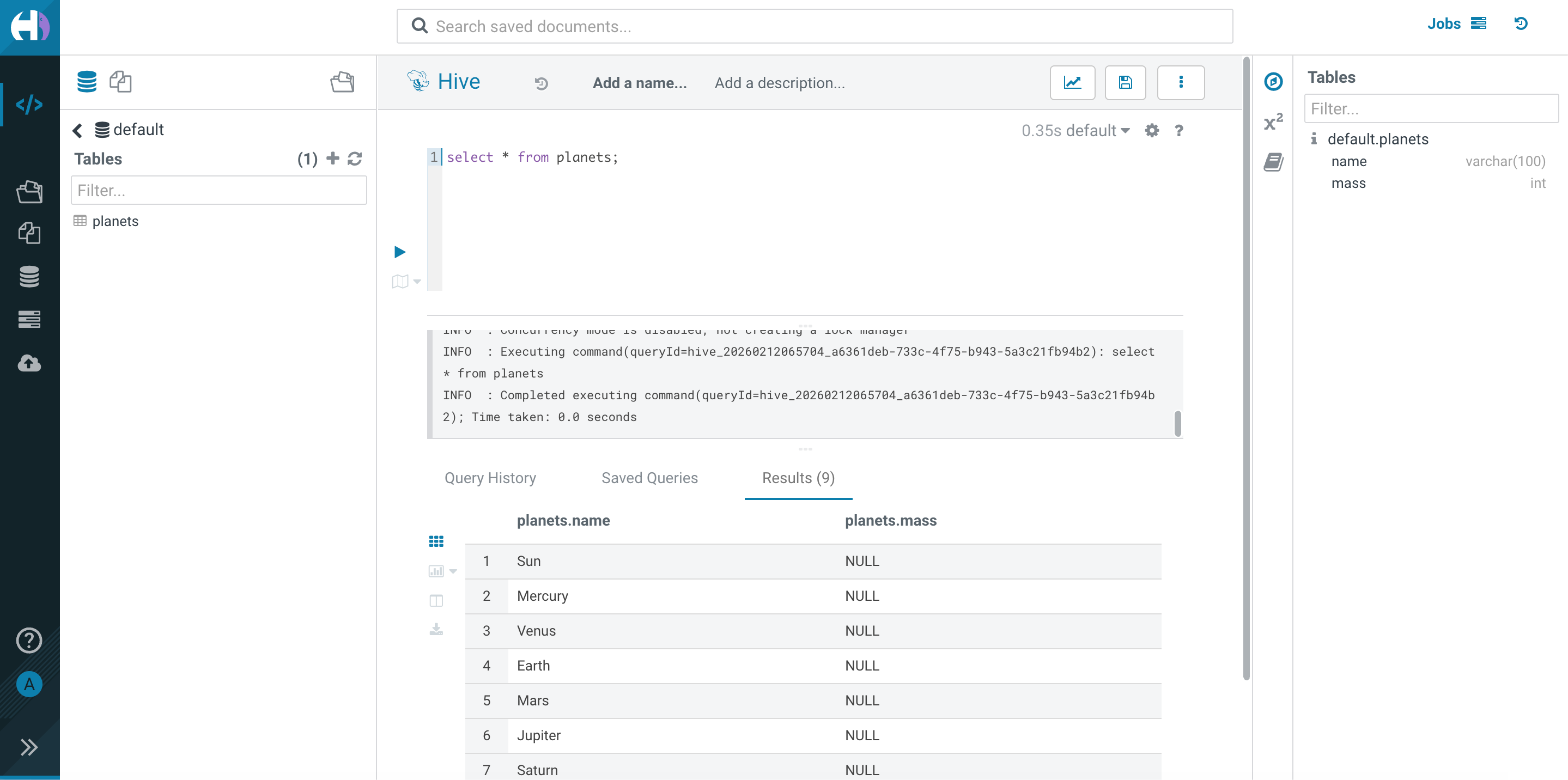

HUE query with masked data
HUE query with masked data
