Solr UI overview

The Solr service provides a web interface where you can view diagnostic and status information, manage collections, configure security, and so on. By default, the web UI is available at http://<host>:8983/solr/#/, where <host> is the ADH host with the Solr Server component installed. You can change the default port number (8983) in the solr.xml Solr configuration section in ADCM. The up-to-date URL(s) of the Solr web UI can be found in ADCM (Clusters<YOUR_CLUSTER>ServicesSolrInfo).

The Solr web UI includes the following sections described below:

Dashboard

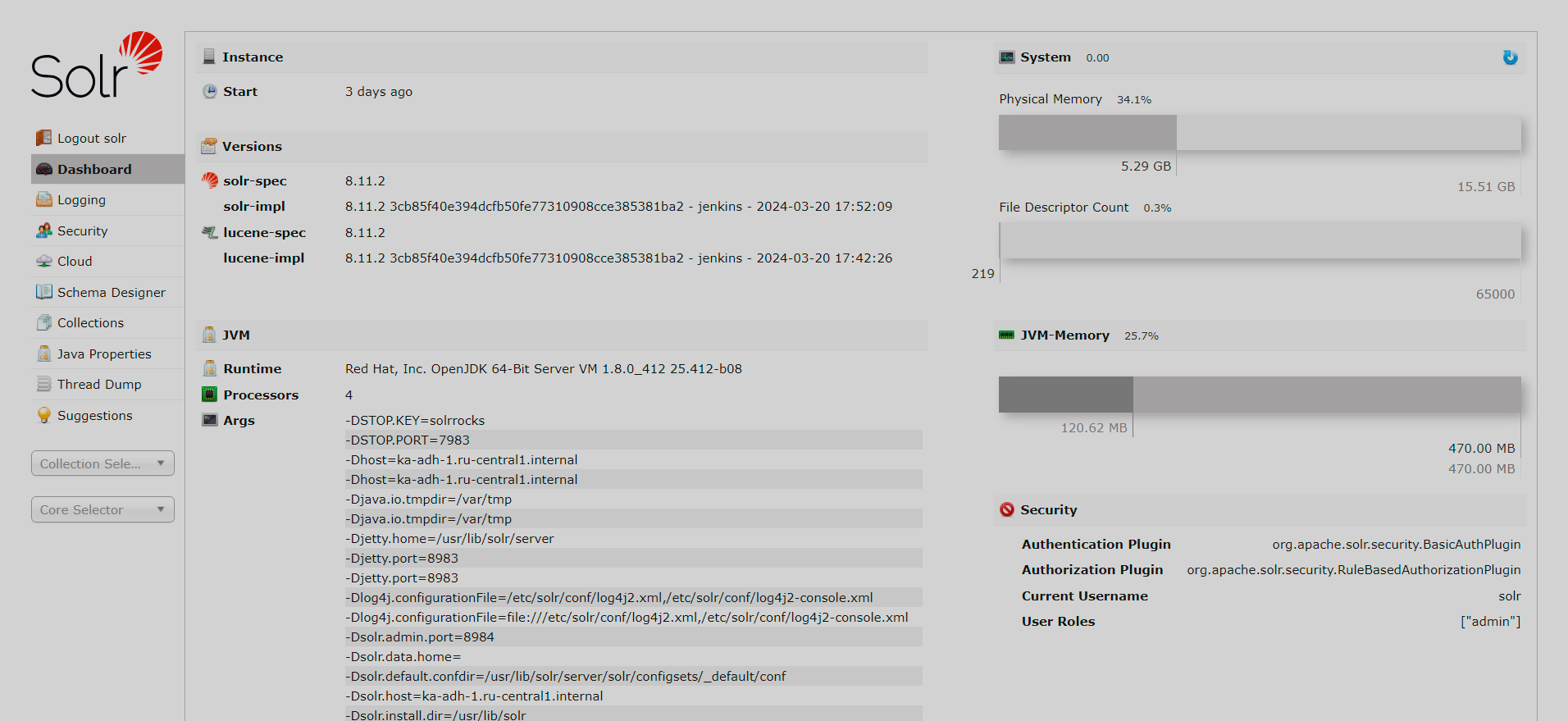

This page displays information about the Solr server instance that runs on the given host, including system resource consumption, JVM parameters, and security details.

Dashboard
The Dashboard page
Dashboard
The Dashboard page

Logging

This page displays Log4j2 logs generated by the Solr server.

Logging
The Logging page
Logging
The Logging page

On the Level tab, you can set logging levels for individual Solr components and classes.

Security

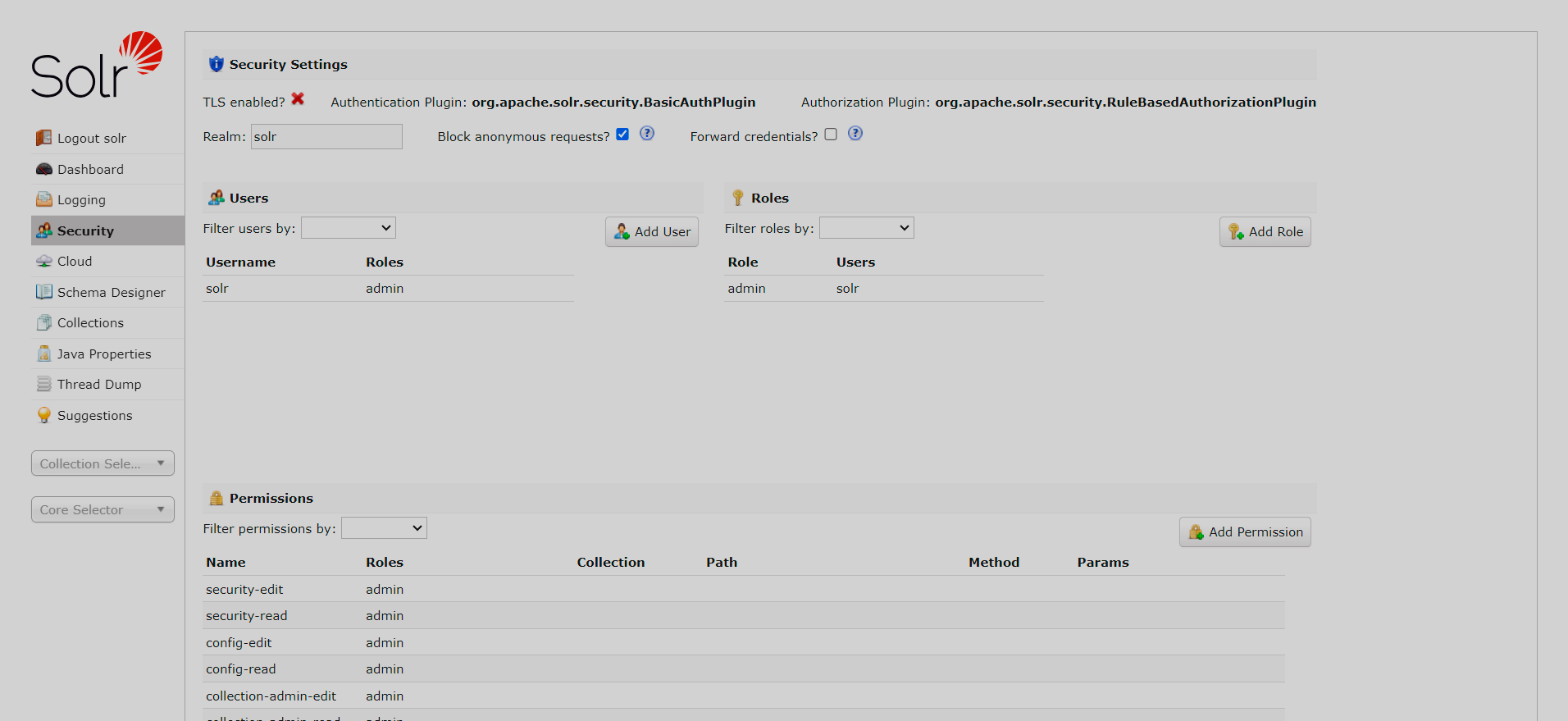

This page contains Solr security settings such as users, roles, permissions, and authentication/authorization parameters. These settings are cluster-wide, meaning that they affect security configuration for all Solr servers in the ADH cluster.

Security
The Security page
Security
The Security page
NOTE
The page becomes available after you enable authentication and authorization for your Solr service.

Cloud

This tab contains several pages that reflect Solr activity in scope of an ADH cluster.

Nodes

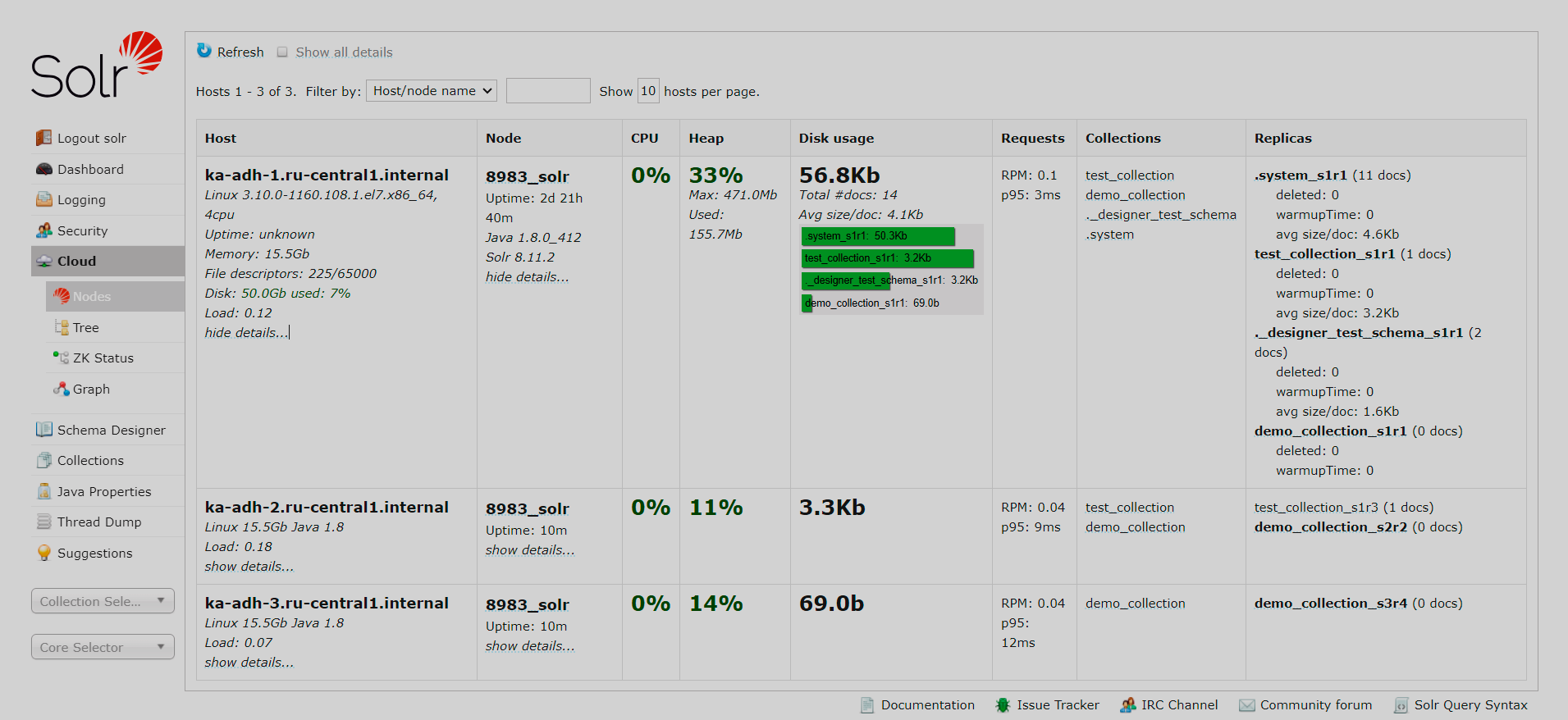

This page displays status information about Solr servers distributed among ADH hosts.

Nodes
The Nodes page
Nodes
The Nodes page

Tree

This page displays the directory structure of ZooKeeper data in the form of a tree.

ZK Status

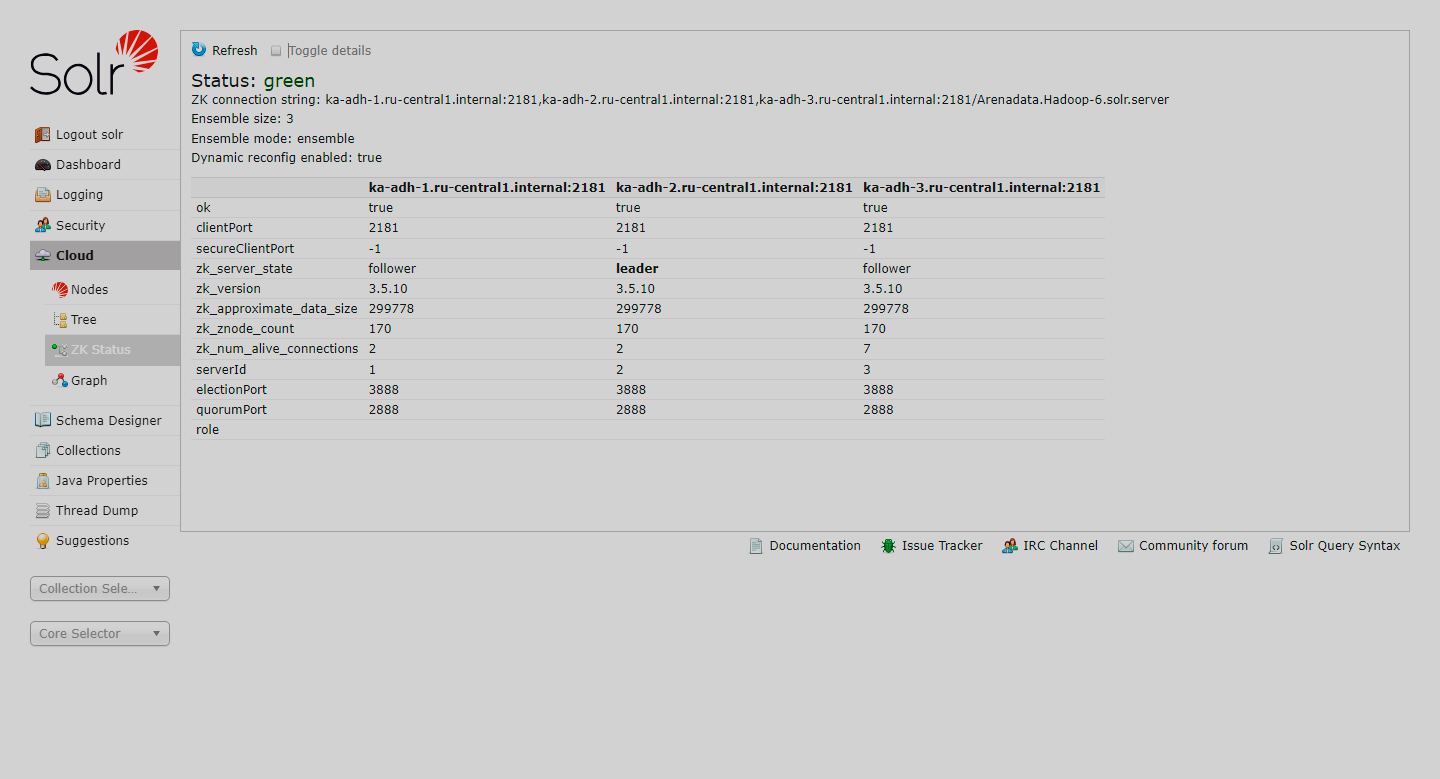

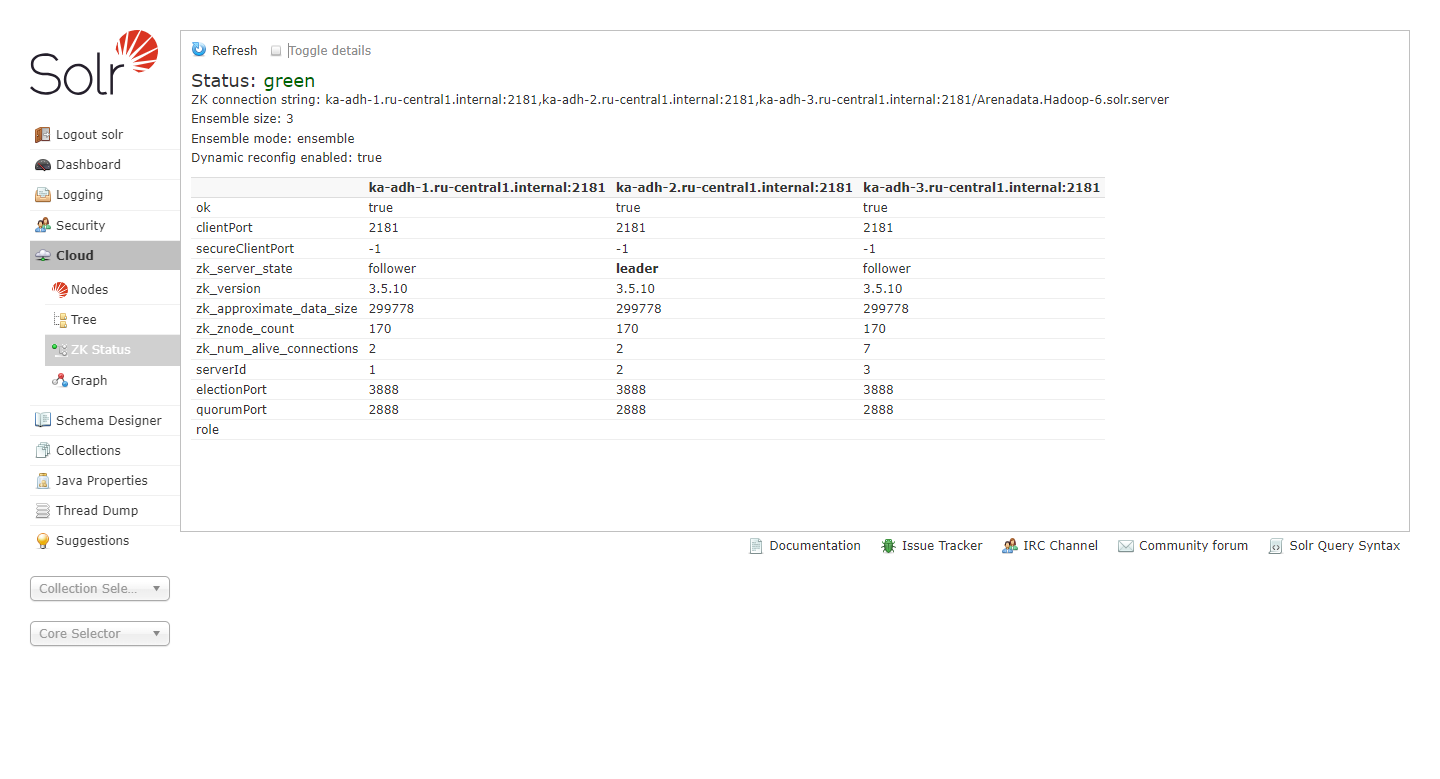

This page reflects the health status of the ZooKeeper ensemble used by Solr. Use the Toggle details option to view more details about each node.

ZK Status
The ZK Status page
ZK Status
The ZK Status page

Graph

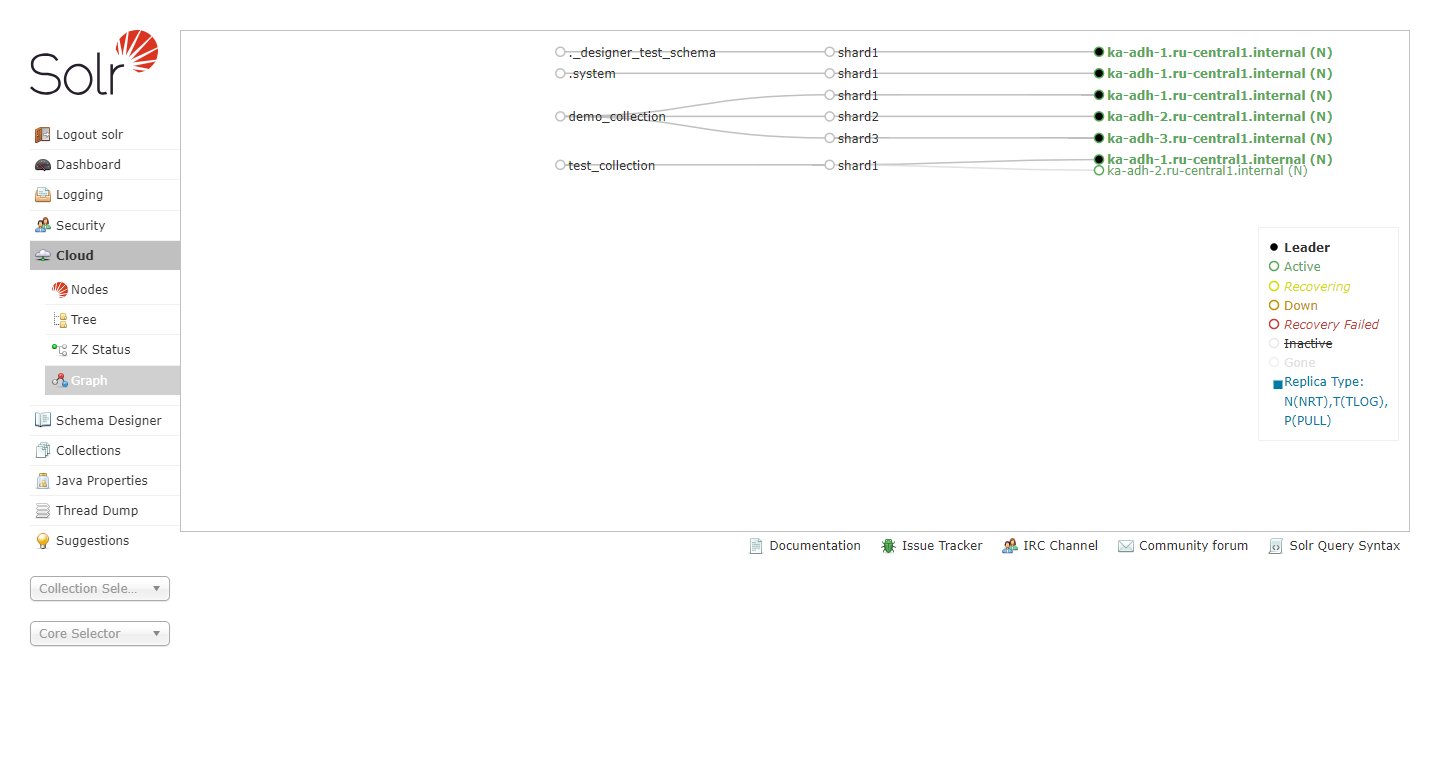

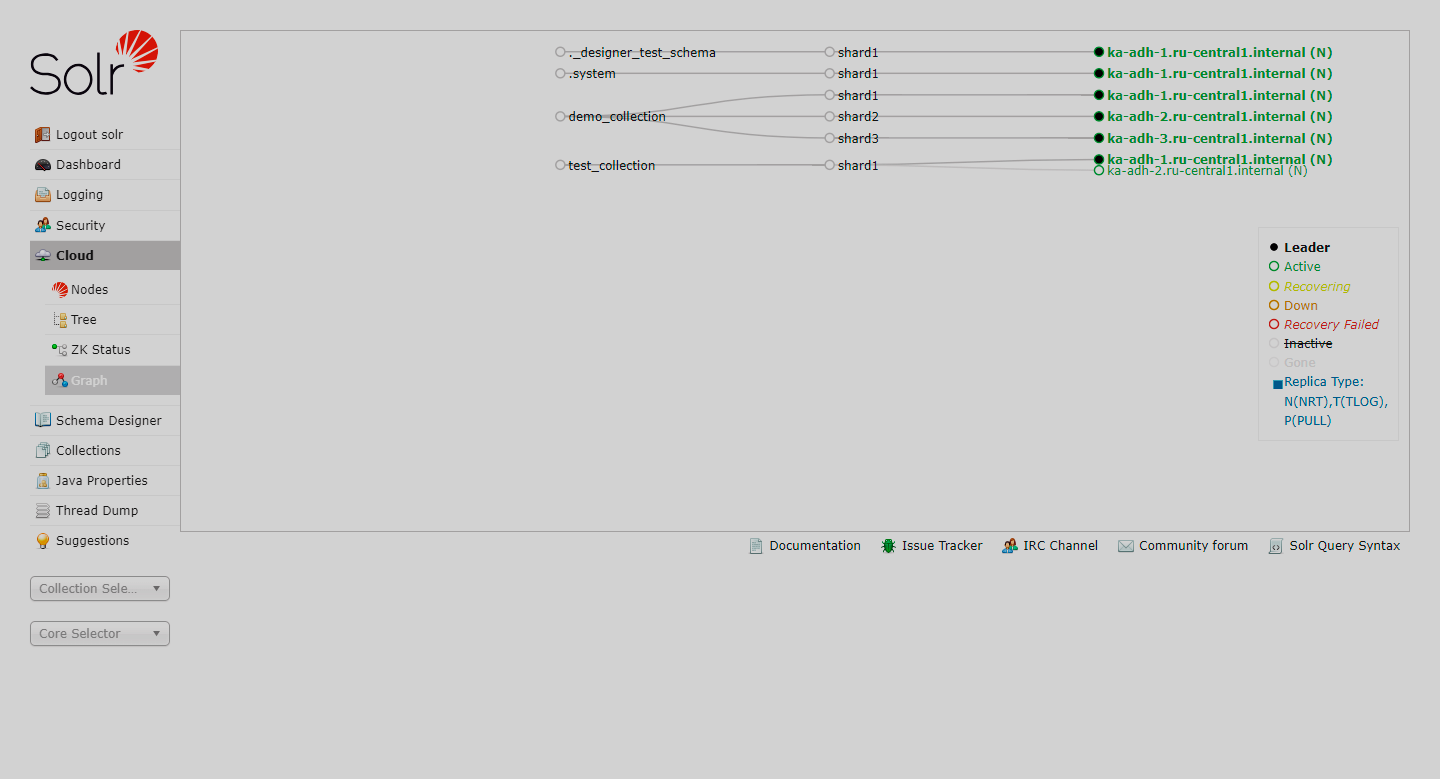

This page renders a graph for each collection, including the shards that make up that collection and the nodes where replicas are hosted.

Graph
The Graph page
Graph
The Graph page

Schema Designer

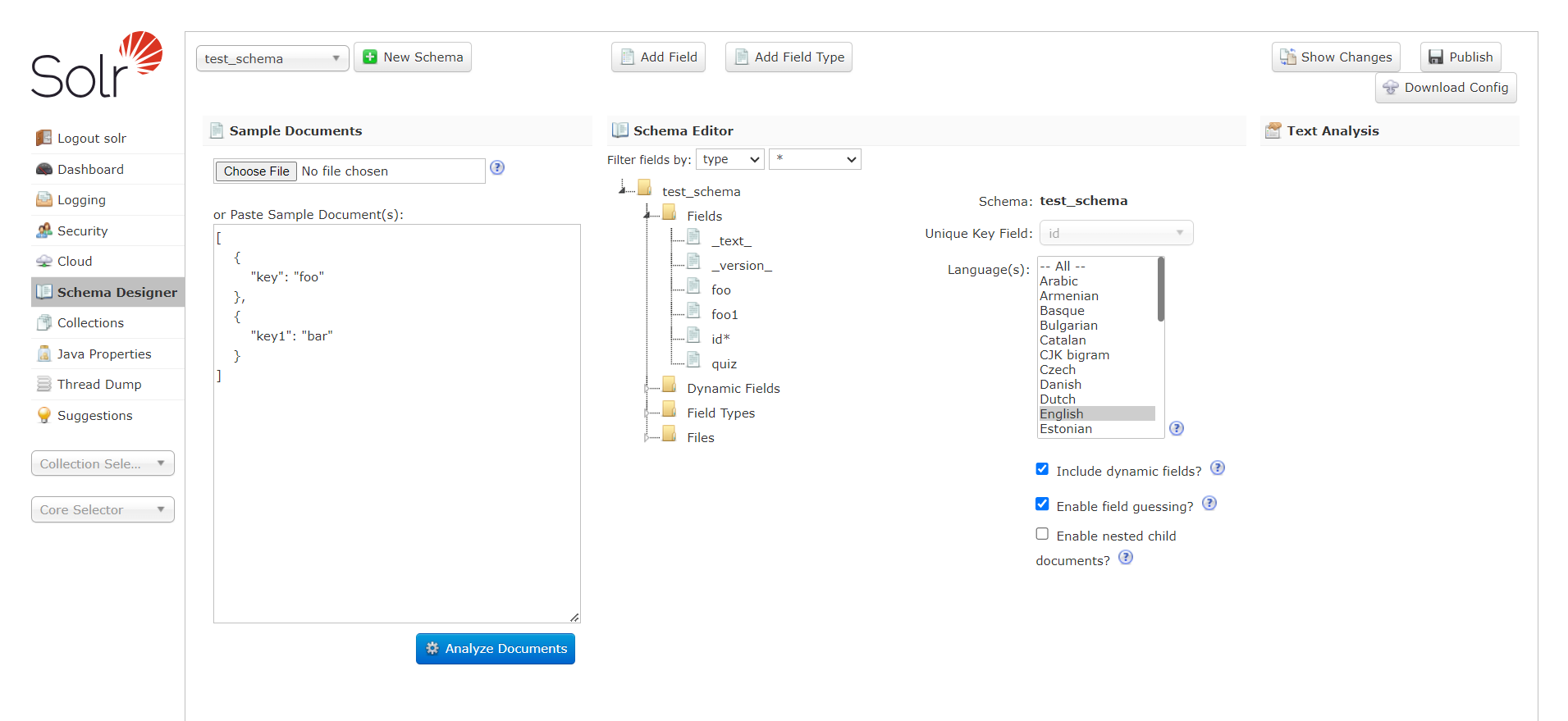

On this page, you can define a new Solr schema. You can either specify all the schema fields manually or you can feed data to Solr to generate the schema on its basis. You can also test your newly defined schema by using the Query Tester section.

Schema Designer
The Schema Designer page
Schema Designer
The Schema Designer page

Collections

On this page, you can manage Solr collections.

Collections
The Collections page
Collections
The Collections page

Java Properties

This page lists all the JVM properties used to run Solr including classpaths, file encodings, JVM memory settings, etc.

Thread Dump

This page provides expandable stacktraces allowing you to inspect the active threads of your Solr servers.
