Example of writing data to ADB with NiFi ADB Connector

Olga Semme

Overview

To illustrate the operation of NiFi ADB Connector, the article shows the implementation of loading data from PostgreSQL database tables into ADB tables (based on Greengage DB).

The creation of NiFi ADB Connector is performed in NiFi user interface and is available starting from ADS 3.9.0.1.b1.

Prerequisites

The following describes the environment used to create the NiFi ADB Connector.

ADS

When configuring the DBCPConnectionPool service to connect to PostgreSQL (ADP) and Greengage DB (ADB) servers, values related to the configuration of ADS, ADP, and ADB clusters are used:

  • Database Connection URL — a link in the jdbc:postgresql://<host>:5432/<database> format, where:

    • <host> — the host where the ADPG component is installed (for connecting to the PostgreSQL server) or the ADB Master component (for connecting to the Greengage DB server);

    • <database> — the name of the database where the table you’re using is created.

    Example URL: jdbc:postgresql://10.92.38.119:5432/adb.

  • Database Driver Class Name — the name of the JDBC PostgreSQL driver class, which allows programs to connect to a PostgreSQL database using standard Java code (for example, org.postgresql.Driver).

  • Database Driver Location(s) — the driver file location in the file:<path><driver_name> format, where:

    • <path> — the path to the driver binary JAR file located on the hosts where NiFi is installed.

    • <driver_name> — the name of the driver JAR file that matches the version of Greengage DB or PostgreSQL being used.

    Example of the path to the driver file corresponding to ADB 6.30.0: file:/tmp/postgresql-42.2.27.jar.

    The command below allows you to download the necessary version of the JAR file into the desired directory:

    $ wget https://jdbc.postgresql.org/download/postgresql-42.2.27.jar

ADP

  • The ADP cluster is installed according to the Online installation guide.

  • The following preparatory actions were performed on the installed PostgreSQL server (the ADP cluster):

    • A user named my_user, with SUPERUSER privileges and a password, was created in the postgres database.

    • A my_table table was created in the postgres database and several rows with data were added to it.

    • The pg_hba.conf file is configured to provide user access from the host where the NiFi service of the ADS cluster is installed. For this purpose, an entry about the host address and user is added to the PG_HBA field on the configuration parameters page of the ADPG service:

      host    postgres  my_user      10.92.43.206/32     trust
NOTE

For information on working with ADP, see:

ADB

  • The ADB cluster is installed according to the Online installation guide.

  • The ADB service is installed in the ADB cluster.

  • A user with the new_user name, SUPERUSER privileges and password has been created in the adb database.

  • A my_table table has been created in the adb database to record data.

  • The pg_hba.conf file is configured to provide user access from the host on which the ADS cluster NiFi service is installed. To do this, an entry about the host address and user has been added to the PG_HBA field on the configuration parameters page of the ADB service:

    host    adb  new_user       10.92.40.128/24     trust

  • On the Interconnect network to which the cluster hosts are connected, you should specify a jumbo frame MTU=9000 so that the packets generated by ADB (gp_max_packet_size + overhead) can fit into these frames. For more information about ADB cluster network requirements, see Network requirements.

NOTE

For information on working with ADB tables, see:

Connect to PostgreSQL server (ADP)

  1. Create a QueryDatabaseTable processor and open its configuration. This processor executes SQL queries to retrieve data from a PostgreSQL table. Fill in the parameters related to the PostgreSQL table used.

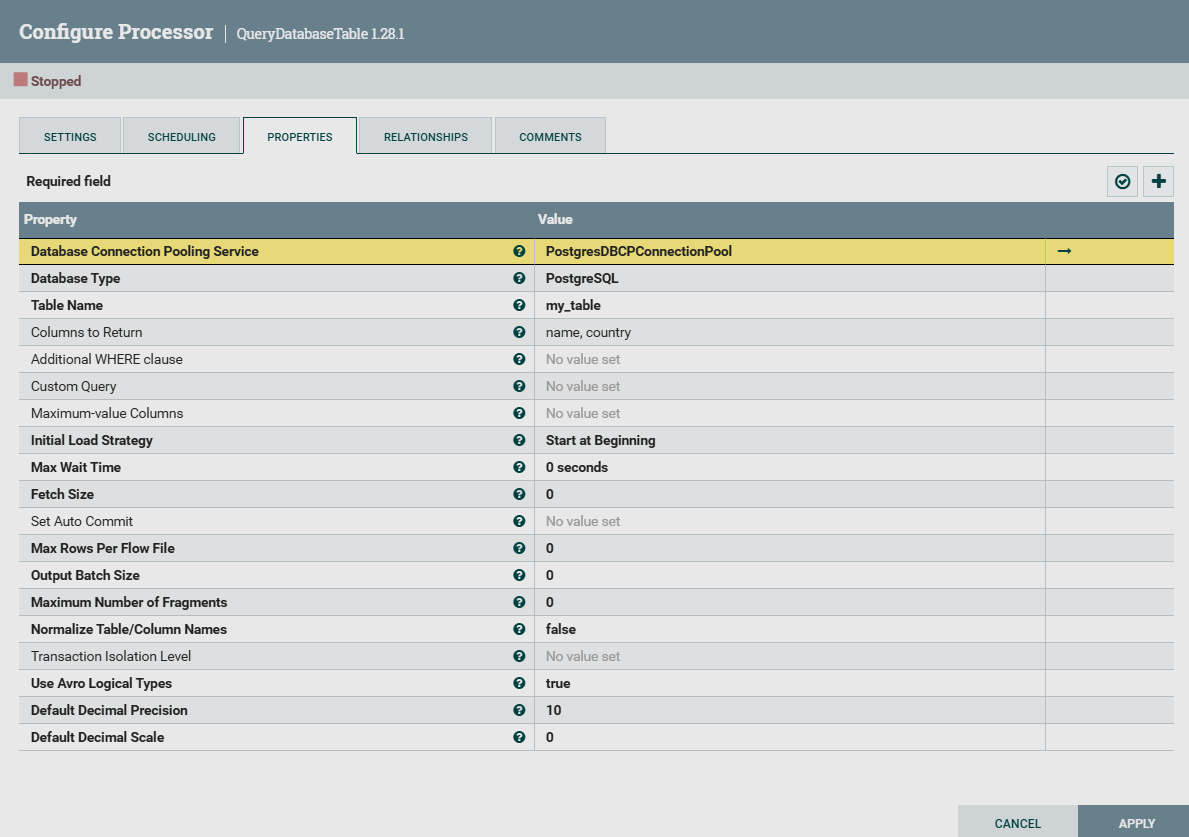

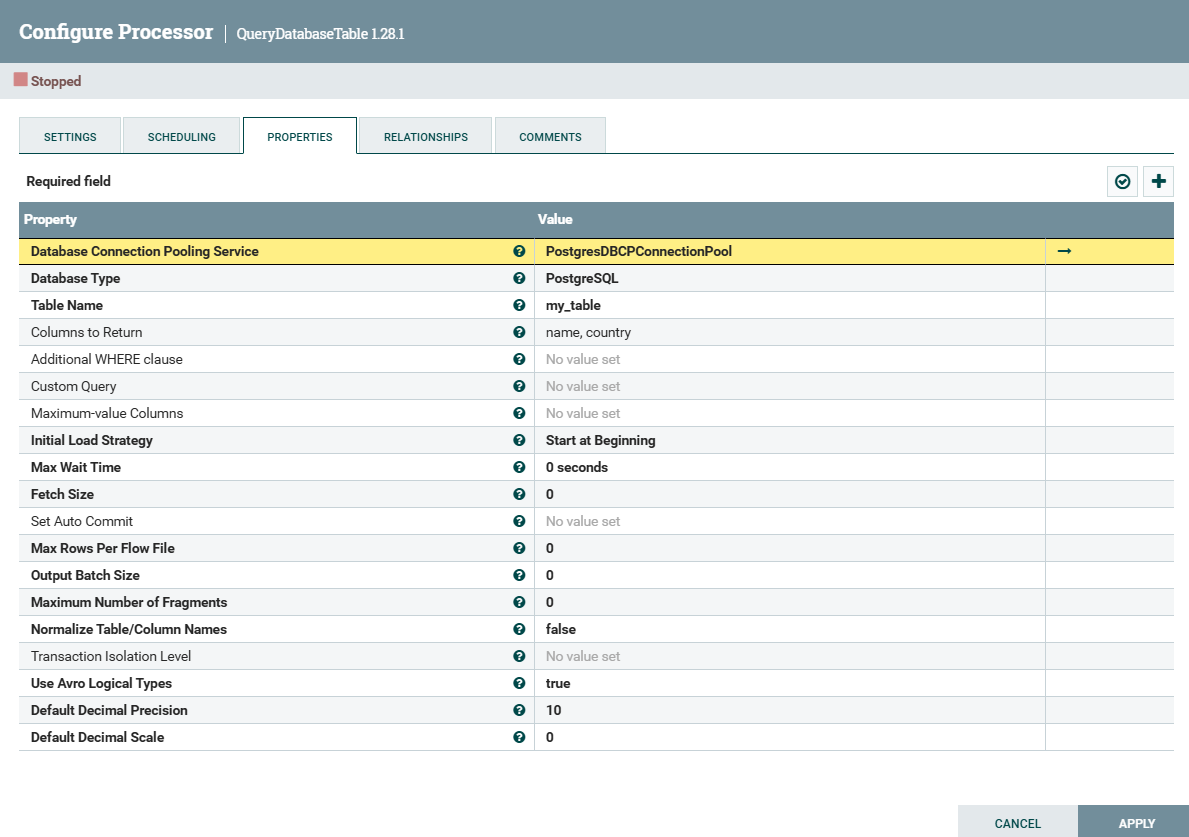

    QueryDatabaseTable processor configuration
    QueryDatabaseTable processor configuration
    QueryDatabaseTable processor configuration
    QueryDatabaseTable processor configuration

  2. Go to the Database Connection Pooling Service parameter value field, select Create new service…​ in the pop-up list and in the window that opens, create an instance of the DBCPConnectionPool service to create a connection to the PostgreSQL server.

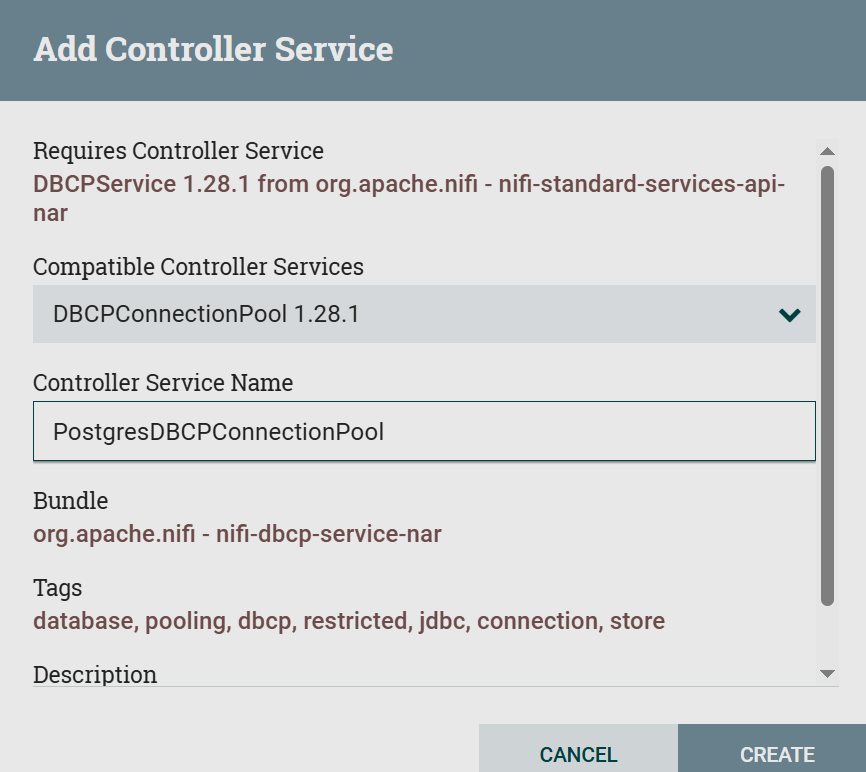

    Creating an instance of the DBCPConnectionPool service
    Creating an instance of the DBCPConnectionPool service
    Creating an instance of the DBCPConnectionPool service
    Creating an instance of the DBCPConnectionPool service

  3. After saving the created instance, click arrow2 light. In the next NiFi Flow Configuration → Controller Services window, open the service configuration and specify parameters related to the PostgreSQL database.

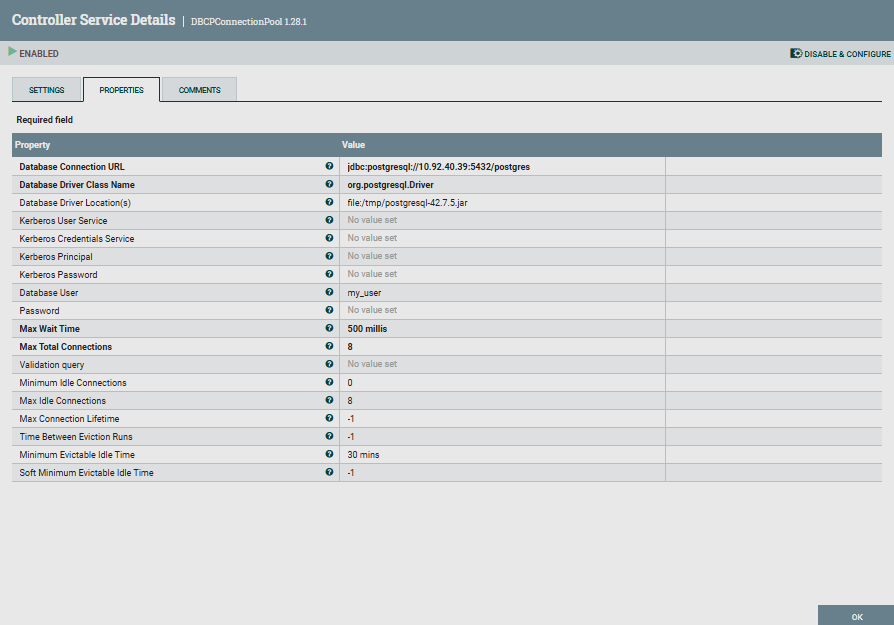

    PostgressDBCPConnectionPool service configuration
    PostgressDBCPConnectionPool service configuration
    PostgressDBCPConnectionPool service configuration
    PostgressDBCPConnectionPool service configuration

Creating service instances can be done before creating the processor. This can be used to connect multiple processors to a single service. To create a service:

  1. Right-click in the empty flow field and select Configure in the context menu that opens.

  2. In the NiFi Flow Configuration window, go to the Controller Services tab and click +.

  3. Select the desired service from the list and create an instance of the service in the window that opens.

Connect to Greengage DB (ADB)

  1. To connect to the Greengage DB table, create a PutGreengageRecord processor, open its configuration, and specify parameters related to the table.

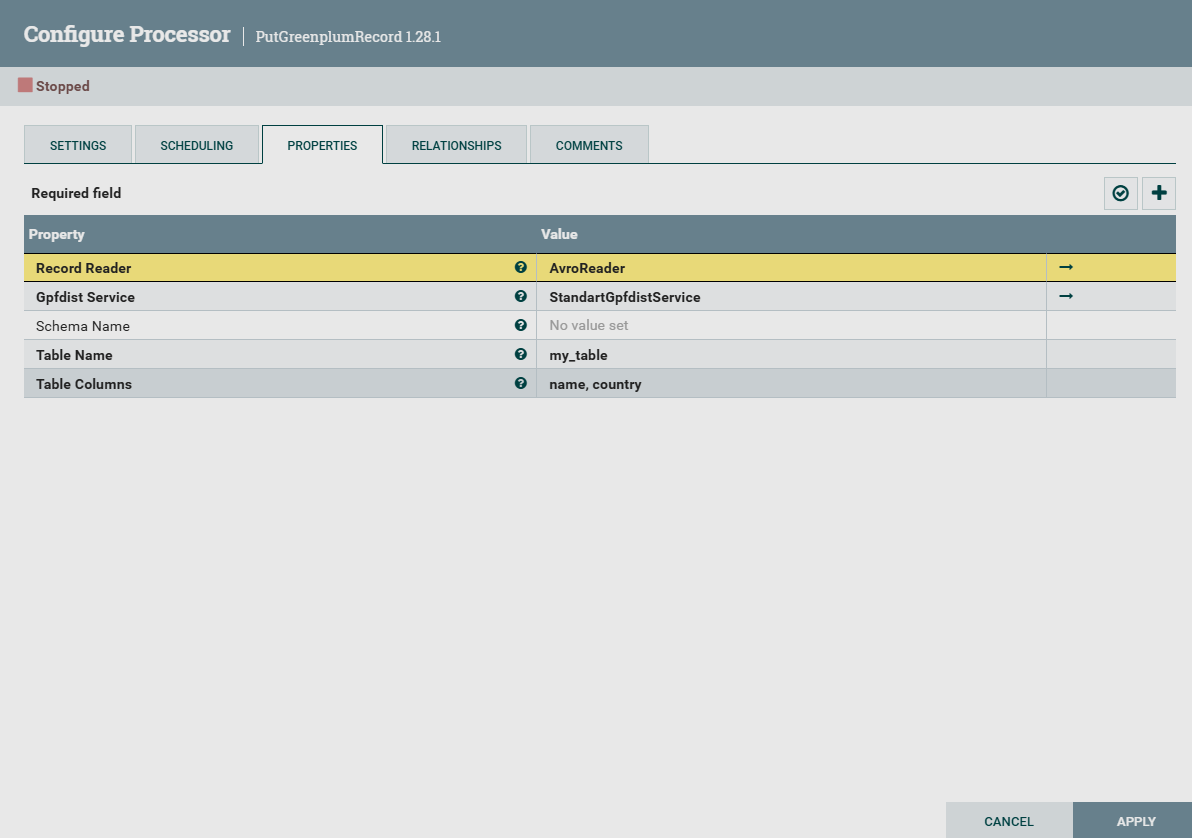

    PutGreengageRecord processor configuration
    PutGreengageRecord processor configuration
    PutGreengageRecord processor configuration
    PutGreengageRecord processor configuration

  2. Go to the Gpfdist Service parameter value field, select Create new service…​ in the pop-up list, and create an instance of the StandardGpfdistService service in the window that opens.

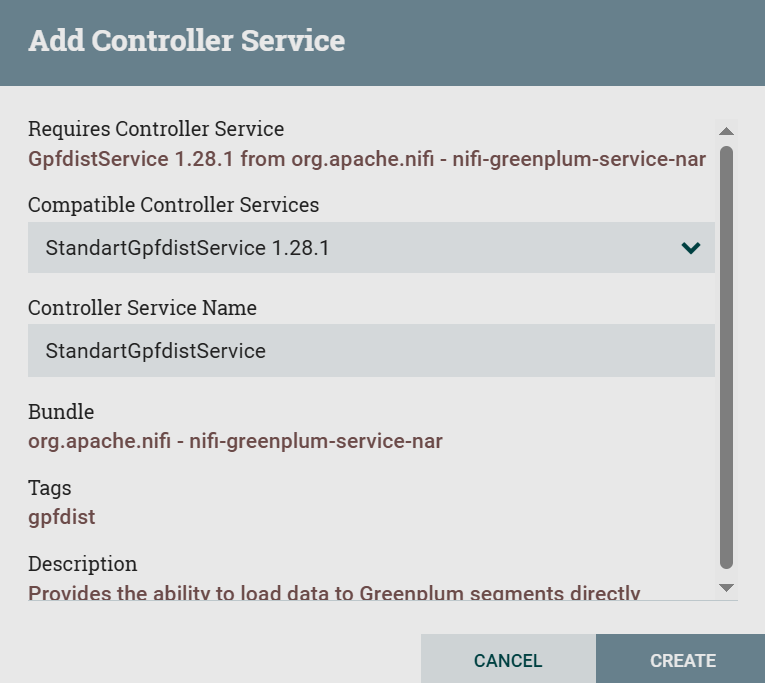

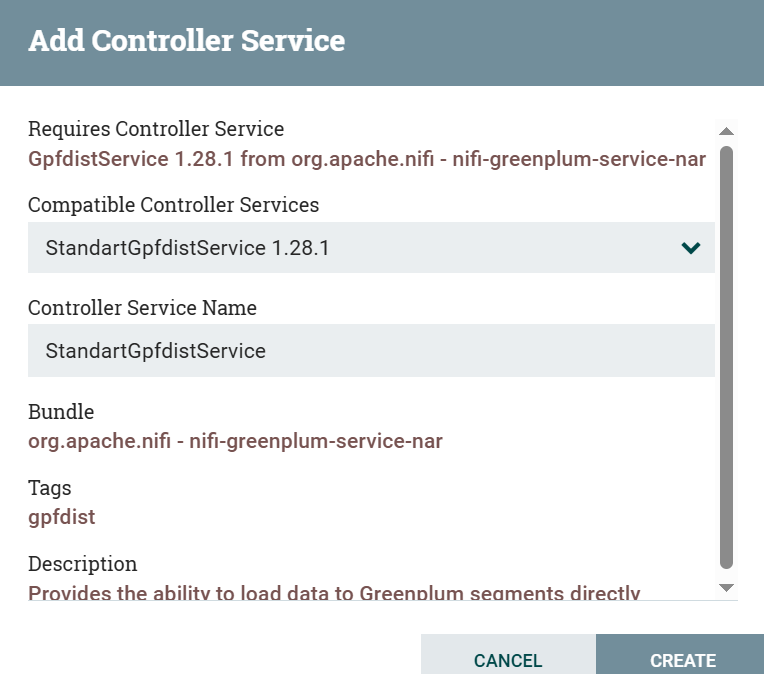

    Creating an instance of the StandardGpfdistService service
    Creating an instance of the StandardGpfdistService service
    Creating an instance of the StandardGpfdistService service
    Creating an instance of the StandardGpfdistService service

  3. After saving the created instance, click arrow2 light. In the next NiFi Flow Configuration → Controller Services window, open the service configuration and specify necessary parameters.

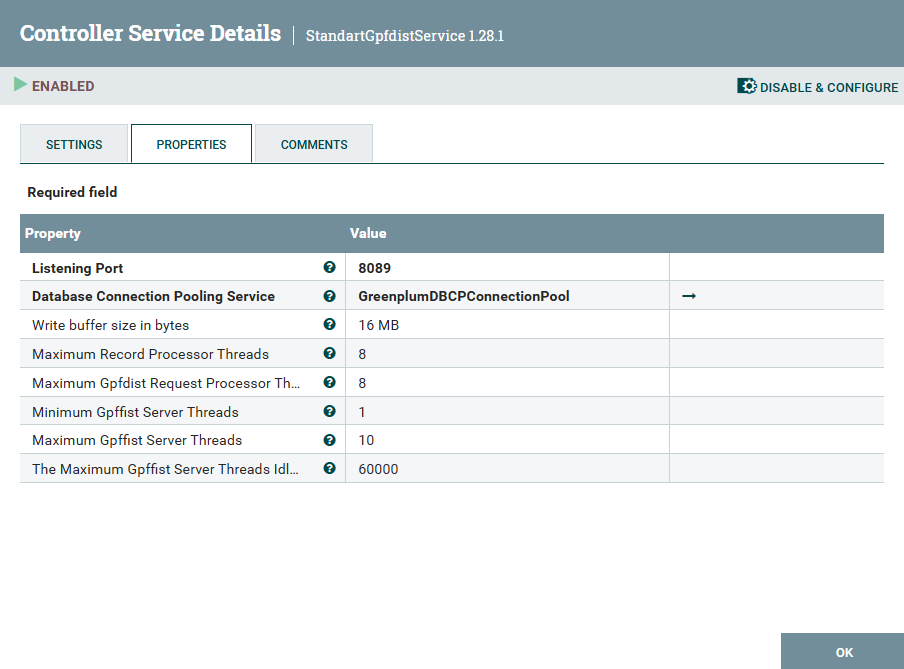

    StandardGpfdistService service configuration
    StandardGpfdistService service configuration
    StandardGpfdistService service configuration
    StandardGpfdistService service configuration

  4. Go to the Database Connection Pooling Service parameter value field, select Create new service…​ in the pop-up list and in the opened window, create an instance of the DBCPConnectionPool service to create a connection to Greengage DB.

  5. After saving the created instance, click arrow2 light and in the opened NiFi Flow Configuration → Controller Services window, open the service configuration and specify parameters related to the ADB database.

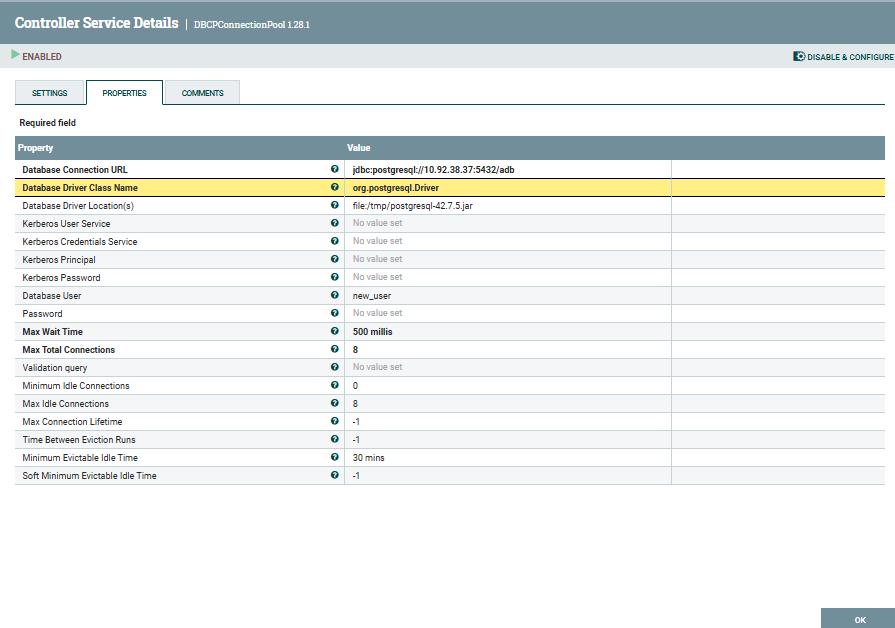

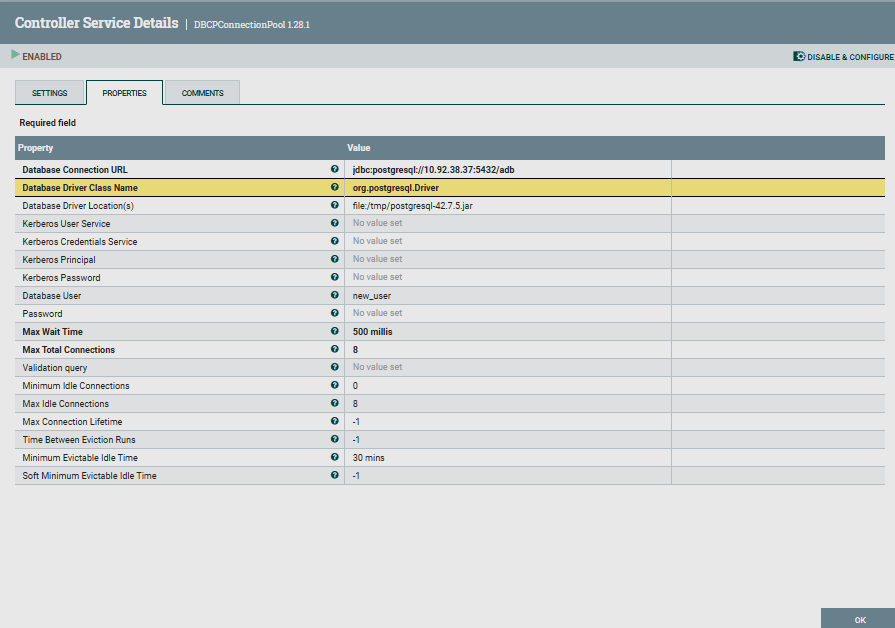

    GreengageDBCPConnectionPool service configuration
    GreengageDBCPConnectionPool service configuration
    GreengageDBCPConnectionPool service configuration
    GreengageDBCPConnectionPool service configuration

  6. Close the NiFi Flow Configuration → Controller Services window and go back to the PutGreengageRecord processor configuration. In the Record Reader parameter value field, create an instance of the AvroReader service to read records from PostgreSQL in Avro format with built-in schema.

If you are using multiple PutGreengageRecord processors to transfer data from different sources to a single ADB database, for the Gpfdist Service value, select the same StandardGpfdistService you created.

After all services are created, they are displayed on the NiFi Flow Configuration → Controller Services page.

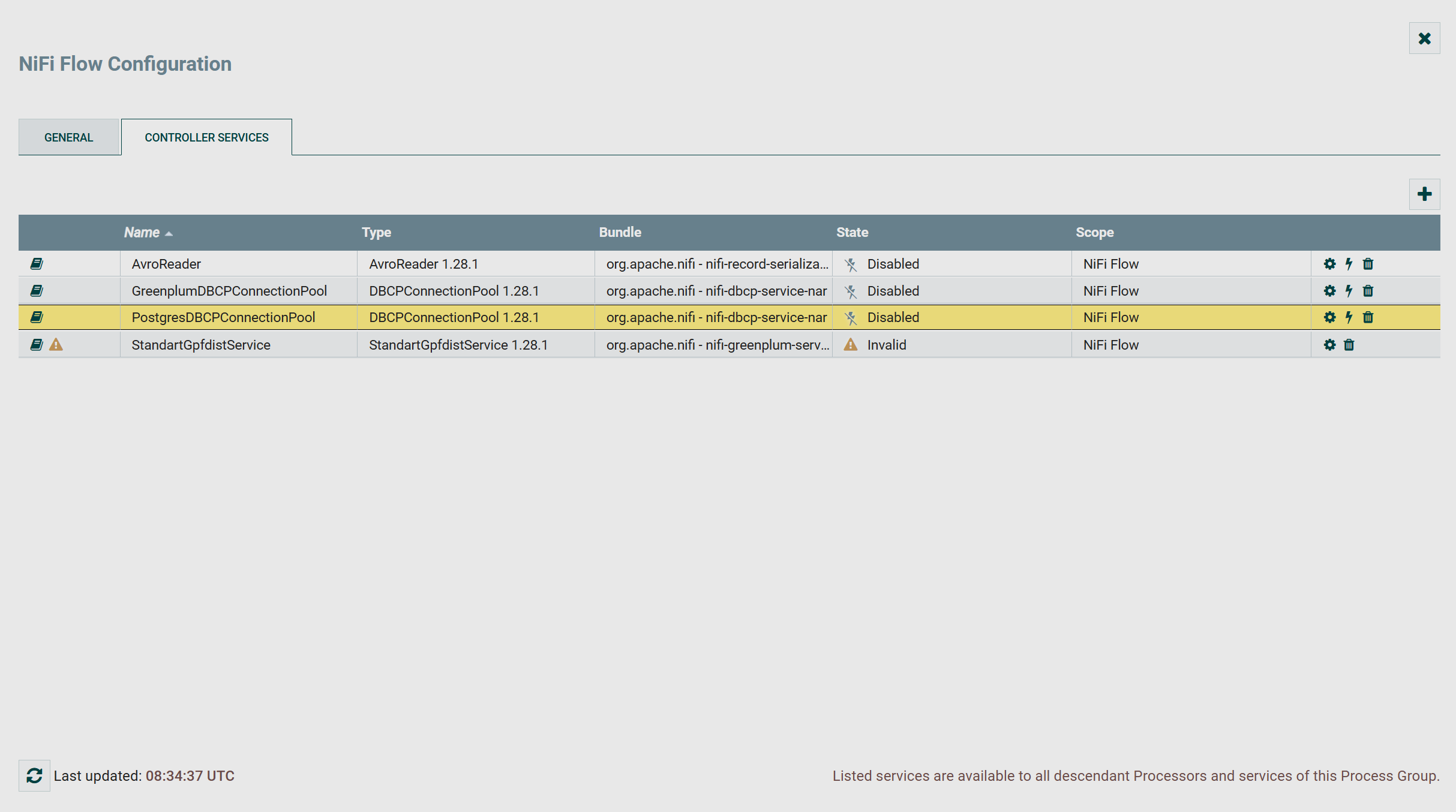

Created services
Created services
Created services
Created services

The StandardGpfdistService service is displayed as Invalid until its associated service GreengageDBCPConnectionPool is started.

Start a data flow

Create and configure a connection between processors.

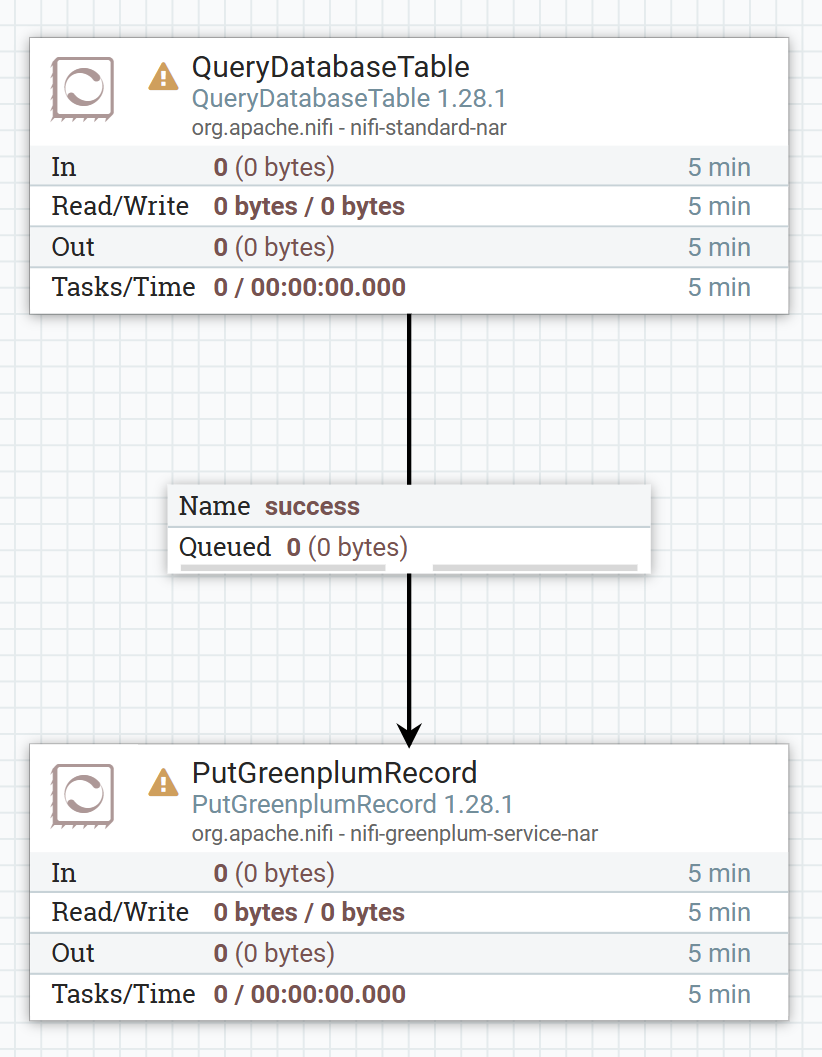

Created and connected processors
Created and connected processors
Created and connected processors
Created and connected processors

Processors are displayed with errors because the services associated with them are not running.

To start the flow, perform the following:

  1. Start the services one by one on the NiFi Flow Configuration → Controller Services page by clicking on the icon nifi ui oper 02.

  2. Run the created data stream.

Using queries to the ADB database, you can read the received data.
