Monitoring actions

This article describes the main actions available for working with the service in ADCM.

To go to actions in the service, click the cluster name on the Clusters page, open the Services tab, click actions default dark actions default light in the line corresponding to the Monitoring service, and choose the desired action.

When you select an action, ADCM displays a confirmation form. In this form, on the Confirmation tab, you can select the Verbose check box to view additional information about the action execution on the Jobs page.

Action confirmation form
Action confirmation form

To view the results of an action, go to Jobs and click the name of the corresponding action or on its component.

Next, the page with the results of the action becomes available for viewing, where you can analyze errors if they occur.

Action result
Action result

Add/Remove components

The Add/Remove components action allows you to change the number of components installed for the service.

After selecting the action, select hosts to install instances of the new component or remove hosts previously associated with the service component.

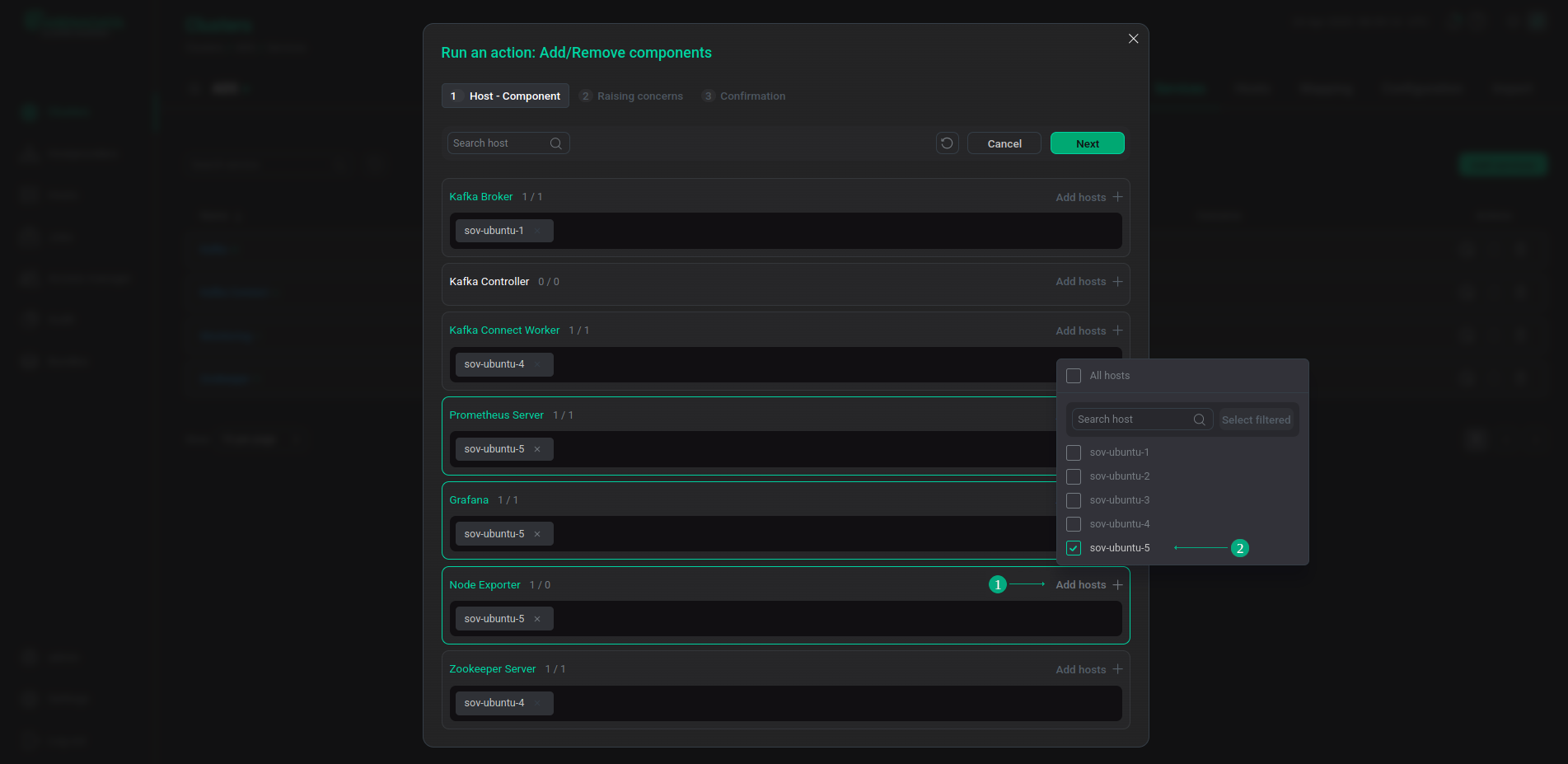

Selecting hosts for a service component
Selecting hosts for a service component
NOTE

The Prometheus Server and Grafana components can only be installed one instance per cluster.

Check

The Check action checks the health of the service.

In Monitoring, the Check checks the statuses of all service components.

Reconfigure and restart

The Reconfigure and restart action allows you to reconfigure the service if configuration parameters have been changed and to stop and start the service.

After selecting the action, select parameter values ​​if necessary:

  • Zookeeper autorestart — set to true if you want to reconfigure and restart the ZooKeeper service.

  • Grafana: apply password — set to true if you want to reset the password for the Grafana component.

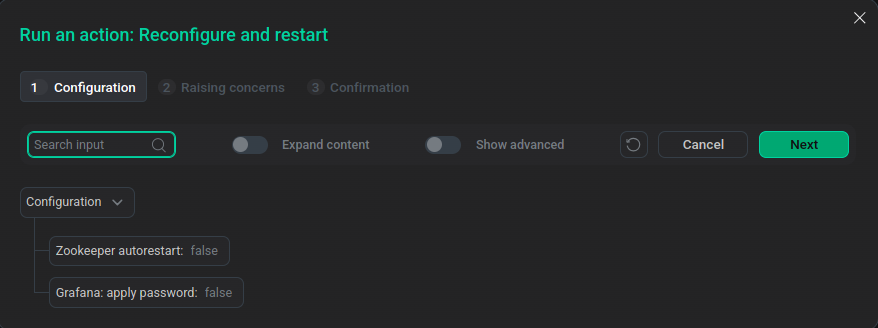

Configuring restart parameters
Configuring restart parameters

Reinstall

The Reinstall action reinstalls Monitoring.

Start

The Start action starts the service.

Stop

The Stop action stops the service.
