Schema-Registry actions

Olga Semme

This article describes the main actions available for working with the service using the Actions green arrow icon in ADCM.

To go to the actions in the service, do the following:

  1. On the CLUSTERS tab click on the row with the cluster.

  2. In the cluster menu that opens, go to the Services page.

  3. Click on the Actions icon green arrow in the row corresponding to the Schema-Registry service and choose the desired action.

schema registry actions 01
Available actions in Schema-Registry

To view the results of an action, go to JOBS and click on the name of the corresponding action or on its component.

schema registry actions 03
View the action result

Next, the page with the results of the action becomes available for viewing, where you can analyze errors if they occur.

schema registry actions 04
Action result

Check

The Check action checks the health of the service.

After selection, confirm the action by clicking Run.

kafka actions 02
Action confirmation

In Schema-Registry, Check action starts the creation of a test topic, writes messages to it, and checks the availability of messages on each of the hosts with Kafka Broker.

Expand

The Expand action expands the number of service instances in the established cluster. To expand the number of service instances, do the following:

  1. Set options for installing new instances of the service.

  2. Confirm your choice by clicking Next.

    kafka actions 05
    Configuration to run cluster extension
    Options for installing new service instances
    Option Description

    Disable SELinux

    Disable SELinux on added hosts. In order for this setting to take effect, after the Install operation is completed, you must restart the hosts manually

    Disable Firewalld

    Shutting down firewalld on hosts

    Install OpenJDK

    Installing java-1.8.0-openjdk package on hosts

    Set vm.swappiness to 0

    Disabling swapping on hosts

    Configure /etc/hosts

    Write added nodes to /etc/hosts on cluster hosts. It is recommended to disable this option if DNS is configured

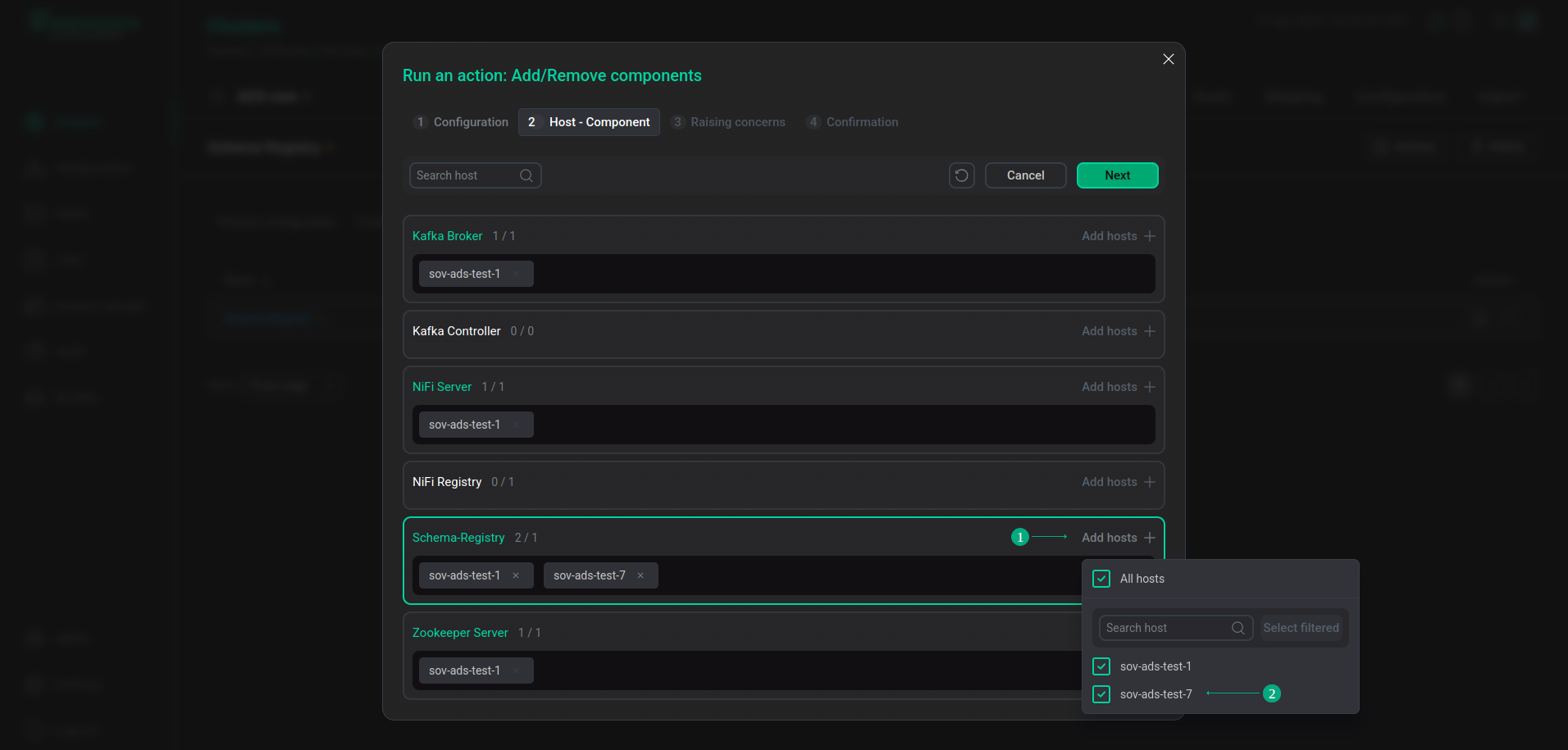

  3. Add the required number of hosts and place on it the components available for placement.

  4. Confirm the action by clicking Run.

    schema registry actions 07
    Installing service components for cluster expansion

Shrink

The Shrink action reduces the number of service instances in the installed cluster. To reduce the number of service instances, do the following:

  1. Select which components to remove from which host.

  2. Confirm the action by clicking Run.

schema registry actions 09
Removing service components to reduce the cluster

Restart

The Restart action stops and then starts the service.

After selection, confirm the action by clicking Run.

kafka actions 11
Action confirmation

Start

The Start action starts the service.

After selection, confirm the action by clicking Run.

kafka actions 16
Action confirmation

Stop

The Stop action stops the service.

After selection, confirm the action by clicking Run.

kafka actions 15
Action confirmation
