Установка Impala в Kubernetes с помощью CLI

Сергей Тихомиров

В данной статье описан процесс развертывания Impala в Kubernetes с помощью CLI-утилиты adc. Настройки безопасности для Impala в Kubernetes описаны в отдельных статьях:

Требования

Для развертывания Impala в Kubernetes с помощью CLI необходимы:

  • Кластер Kubernetes (версии 1.32 или более поздней) с настроенным доступом через kubectl.

  • CLI-утилита, извлеченная из offline-пакета.

  • Извлеченные и загруженные в ваш репозиторий образы:

    • hub.arenadata.io/adc-enterprise/impala-operator:<version>

    • hub.arenadata.io/adh-enterprise/impala-docker:<version>

    Эти артефакты присутствуют в offline-пакете, который можно запросить у службы поддержки Arenadata.

Некоторые требования зависят от используемого хранилища:

  • HDFS

  • S3

Функционирующий ADH-кластер совместимой версии со следующими сервисами:

  • Core configuration

  • ADPG

  • Zookeeper

  • HDFS

  • YARN

  • Hive

  • Hive Metastore (вы можете использовать свой каталог, но совместимость не гарантируется).

  • S3-совместимое хранилище.

Если вы используете HMS ADH, выполните следующие шаги:

  • В ADCM настройте сервис Core configuration, установив следующие параметры в группе core-site.xml:

    • fs.defaultFS — s3://demo-s3

    • fs.s3a.endpoint — <s3_host>

    • fs.s3a.access.key — <access_key>

    • fs.s3a.secret.key — <secret_key>

    • fs.s3a.path.style.access — true

  • Настройте сервис Hive, установив следующий параметр в группе hive-site.xml:

    • hive.metastore.warehouse.dir — s3a://demo-s3/apps/hive/warehouse

Шаг 1. Установка оператора Impala

  1. Инициализируйте оператор Impala:

    $ ./adc init --impala-operator -o impala-operator.yaml

    Данная команда создаст файл impala-operator.yaml с шаблоном конфигурации.

  2. Отредактируйте конфигурационный файл:

    impala-operator.yaml
    apiVersion: adc.arenadata.io/v1alpha1
kind: ImpalaOperator
metadata:
  name: impala-operator
  namespace: impala-operator (1)
spec:
  image: hub.arenadata.io/adc-enterprise/impala-operator:<tag> (2)

  # Number of replicas
  # replicas: 1

  resources:
    limits:
      cpu: 500m
      memory: 256Mi

  # Operator ServiceAccount. create: true (default) also creates the manager and per-payload-namespace Role/RoleBinding bound to it; create: false skips all three - name then refers to a ServiceAccount (and RBAC) managed entirely outside the CLI.
  serviceAccount: (3)
    create: true
    name: "impala-operator"

  # Whether the CLI creates the product namespace.
  # The namespace name is set in metadata.namespace.
  namespace:
    create: true

  # Create namespaces to run the payload.
  createPayloadNamespaces: true

  # List of namespaces to run the payload in.
  payloadNamespaces: (4)
    - impala

  ## Image pull secret for a private registry.
  ## Set 'externalSecretName' to reference an existing Secret,
  ## or set 'credentials' and optionally 'secretName' to let the CLI create one.
  #imagePullSecret:
  #  # Use a Secret managed outside ADC.
  #  externalSecretName: existing-registry-secret
  #
  #  ## Or let ADC create the Secret.
  #  #secretName: custom-registry-secret
  #
  #  #credentials:
  #  #  registry: registry.example.com
  #  #  username: user
  #  #  password: pass

  ## Operator monitoring configuration. Supports product-specific metrics export and optional vmagent delivery to an external ADM.
  #monitoring:
  #  # Renders a namespace-scoped vmagent that sends metrics to an external ADM.
  #  vmagent:
  #    remoteWrite:
  #      url: http://vminsert.example.com/insert/0/prometheus/api/v1/write
  #    scrapeInterval: 30s
  #    image: hub.arenadata.io/adm-enterprise/vmagent:1.136.0-adm-5.0.0-x86_64
  #    resources:
  #      limits:
  #        cpu: 500m
  #        memory: 512Mi
  #      requests:
  #        cpu: 100m
  #        memory: 128Mi
  #
  #    ## HTTPS settings used by vmagent when scraping product metrics.
  #    #tls:
  #    #  ## CA certificate source used to verify the metrics endpoint.
  #    #  #ca:
  #    #  #  # Use a Secret managed outside ADC.
  #    #  #  externalSecretName: existing-product-metrics-ca
  #    #  #
  #    #  #  ## Or let ADC create the Secret.
  #    #  #  #secretName: product-metrics-ca
  #    #  #
  #    #  #  # Key containing the CA certificate in the referenced Secret.
  #    #  #  certificateKey: ca.crt
  #    #  #
  #    #  #  ## Local CA certificate read by ADC to create the configured Secret.
  #    #  #  #files:
  #    #  #  #  certificatePath: /path/to/ca.crt
  #    #
  #    #  ## Server name used to verify the metrics endpoint certificate hostname.
  #    #  #serverName: metrics.example.com
  #    #
  #    #  # Skip verification of the metrics endpoint certificate. Do not use together with ca.
  #    #  insecureSkipVerify: true
    1 Настройки пространства имен.
    2 URL образа оператора Impala в вашем репозитории.
    3 Настройки сервисного аккаунта.
    4 Список пространств имен, доступных оператору Impala.

  3. Вы можете проверить конфигурацию перед ее применением, выполнив команду apply с флагом --dry-run:

    $ ./adc apply -f impala-operator.yaml --dry-run > impala-operator-render.yaml
    impala-operator-render.yaml
    ---
apiVersion: v1
kind: Namespace
metadata:
  name: impala-operator
spec: {}
status: {}
---
apiVersion: v1
kind: Namespace
metadata:
  name: impala
spec: {}
status: {}
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: impala-operator
  namespace: impala-operator
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: impala-operator-impala-operator-manager
  namespace: impala-operator
rules:
- apiGroups:
  - events.k8s.io
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - coordination.k8s.io
  resources:
  - leases
  verbs:
  - create
  - delete
  - get
  - list
  - patch
  - update
  - watch
- apiGroups:
  - impala.arenadata.io
  resources:
  - clusters
  - executorgroups
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - impala.arenadata.io
  resources:
  - clusters/status
  - executorgroups/status
  verbs:
  - get
  - patch
  - update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: impala-operator-impala-operator-manager
  namespace: impala-operator
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: impala-operator-impala-operator-manager
subjects:
- kind: ServiceAccount
  name: impala-operator
  namespace: impala-operator
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: impala-operator-impala-operator-payload
  namespace: impala
rules:
- apiGroups:
  - events.k8s.io
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - ""
  resources:
  - secrets
  - services
  verbs:
  - create
  - delete
  - get
  - list
  - patch
  - update
  - watch
- apiGroups:
  - apps
  resources:
  - deployments
  - statefulsets
  verbs:
  - create
  - delete
  - get
  - list
  - patch
  - update
  - watch
- apiGroups:
  - impala.arenadata.io
  resources:
  - clusters
  - executorgroups
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - impala.arenadata.io
  resources:
  - clusters/status
  - executorgroups/status
  verbs:
  - get
  - patch
  - update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: impala-operator-impala-operator-payload
  namespace: impala
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: impala-operator-impala-operator-payload
subjects:
- kind: ServiceAccount
  name: impala-operator
  namespace: impala-operator
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app.kubernetes.io/component: operator
    app.kubernetes.io/managed-by: adc-cli
    arenadata.io/operator-type: impala
  name: impala-operator-impala-operator
  namespace: impala-operator
spec:
  selector:
    matchLabels:
      app.kubernetes.io/component: operator
      app.kubernetes.io/managed-by: adc-cli
      app.kubernetes.io/name: impala-operator-impala-operator
  strategy: {}
  template:
    metadata:
      labels:
        app.kubernetes.io/component: operator
        app.kubernetes.io/managed-by: adc-cli
        app.kubernetes.io/name: impala-operator-impala-operator
    spec:
      containers:
      - args:
        - -ns=impala
        image: hub.arenadata.io/adc-enterprise/impala-operator:<tag>
        imagePullPolicy: Always
        livenessProbe:
          httpGet:
            path: /healthz
            port: 8081
          initialDelaySeconds: 5
          periodSeconds: 10
        name: app
        readinessProbe:
          httpGet:
            path: /readyz
            port: 8081
          initialDelaySeconds: 5
          periodSeconds: 10
        resources:
          limits:
            cpu: 500m
            memory: 256Mi
          requests:
            cpu: 500m
            memory: 256Mi
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
            - ALL
          readOnlyRootFilesystem: true
          runAsGroup: 10001
          runAsNonRoot: true
          runAsUser: 10001
      securityContext:
        fsGroup: 10001
        runAsGroup: 10001
        runAsNonRoot: true
        runAsUser: 10001
      serviceAccountName: impala-operator
      terminationGracePeriodSeconds: 10
status: {}

  4. Если манифест корректный, примените конфигурацию и разверните оператор Impala:

    $ ./adc apply -f impala-operator.yaml

    Ожидаемый вывод содержит сообщение с подтверждением успеха:

    time="20260724055338UTC" level="info" msg="operator impala/impala applied to namespace impala-operator"

  5. Проверьте работоспособность подов оператора Impala:

    $ kubectl get pods -n impala-operator

    Ожидаемый вывод должен быть похож на следующий:

    NAME                               READY   STATUS    RESTARTS      AGE
impala-operator-impala-operator-6bf8788587-7s22r   1/1     Running   0          150m

Шаг 2. Установка кластера Impala

  1. Подготовьте файл hadoop_conf.yaml с настройками Hadoop:

    hadoop_conf.yaml

    • HDFS

    • S3

    sites:
  core:
    fs.defaultFS: hdfs://adh
    hadoop.security.authentication: simple
    dfs.client.failover.proxy.provider.adh: org.apache.hadoop.hdfs.server.namenode.ha.ObserverReadProxyProvider
    dfs.ha.namenodes.adh: nn_tsn-adh-k8s-1,nn_tsn-adh-k8s-3
    dfs.namenode.rpc-address.adh.nn_tsn-adh-k8s-1: tsn-adh-k8s-1.ru-central1.internal:8020
    dfs.namenode.rpc-address.adh.nn_tsn-adh-k8s-3: tsn-adh-k8s-3.ru-central1.internal:8020
    dfs.nameservices: adh
  hdfs:
    dfs.client.read.shortcircuit: false
  ozone:
    ozone.om.address.adh.om_tsn-adh-k8s-1: tsn-adh-k8s-1.ru-central1.internal:9862
    ozone.om.address.adh.om_tsn-adh-k8s-2: tsn-adh-k8s-2.ru-central1.internal:9862
    ozone.om.address.adh.om_tsn-adh-k8s-3: tsn-adh-k8s-3.ru-central1.internal:9862
    ozone.om.nodes.adh: om_tsn-adh-k8s-1,om_tsn-adh-k8s-2,om_tsn-adh-k8s-3
    ozone.om.service.ids: adhom
  hive:
    hive.metastore.sasl.enabled: false
    hive.metastore.uris: thrift://tsn-adh-k8s-1.ru-central1.internal:9083
    metastore.use.SSL: false
    sites:
  core:
    fs.defaultFS: s3a://demo-s3
    fs.s3a.impl: org.apache.hadoop.fs.s3a.S3AFileSystem
    fs.s3a.access.key: p.petrov@RU-CENTRAL1.INTERNAL
    fs.s3a.secret.key: 3ab197f82fac43374519b4ad3015a76c778acf51897cf73f409ecba827e64255
  hive:
    hive.metastore.uris: thrift://hms-adh-nia-01.ru-central1.internal:9083
    metastore.use.SSL: false
    fs.s3a.endpoint: http://adh-ctrl-nia-02.ru-central1.internal:9878
    fs.s3a.path.style.access: true
    hive.metastore.warehouse.dir: s3a://demo-s3/apps/hive/warehouse

  2. Инициализируйте кластер Impala:

    $ ./adc init --impala-cluster --hadoop-file hadoop_conf.yaml -o impala-cluster.yaml

    Данная команда создаст файл impala-cluster.yaml с шаблоном конфигурации.

  3. Отредактируйте конфигурационный файл:

    impala-cluster.yaml

    • HDFS

    • S3

    apiVersion: adc.arenadata.io/v1alpha1
kind: ImpalaCluster
metadata:
  name: impala
  namespace: impala (1)
spec:
  image: hub.arenadata.io/adc-enterprise/impala:<tag> (2)

  ## Image pull secret for a private registry.
  ## Set 'externalSecretName' to reference an existing Secret,
  ## or set 'credentials' and optionally 'secretName' to let the CLI create one.
  #imagePullSecret:
  #  # Use a Secret managed outside ADC.
  #  externalSecretName: existing-registry-secret
  #
  #  ## Or let ADC create the Secret.
  #  #secretName: custom-registry-secret
  #
  #  #credentials:
  #  #  registry: registry.example.com
  #  #  username: user
  #  #  password: pass

  hadoop: (3)
    core:
      dfs.client.failover.proxy.provider.adh: org.apache.hadoop.hdfs.server.namenode.ha.ObserverReadProxyProvider
      dfs.ha.namenodes.adh: nn_tsn-adh-k8s-1,nn_tsn-adh-k8s-3
      dfs.namenode.rpc-address.adh.nn_tsn-adh-k8s-1: tsn-adh-k8s-1.ru-central1.internal:8020
      dfs.namenode.rpc-address.adh.nn_tsn-adh-k8s-3: tsn-adh-k8s-3.ru-central1.internal:8020
      dfs.nameservices: adh
      fs.defaultFS: hdfs://adh
      hadoop.security.authentication: simple
    hdfs:
      dfs.client.read.shortcircuit: "false"
    hive:
      hive.metastore.sasl.enabled: "false"
      hive.metastore.uris: thrift://tsn-adh-k8s-1.ru-central1.internal:9083
      metastore.use.SSL: "false"
    ozone:
      ozone.om.address.adh.om_tsn-adh-k8s-1: tsn-adh-k8s-1.ru-central1.internal:9862
      ozone.om.address.adh.om_tsn-adh-k8s-2: tsn-adh-k8s-2.ru-central1.internal:9862
      ozone.om.address.adh.om_tsn-adh-k8s-3: tsn-adh-k8s-3.ru-central1.internal:9862
      ozone.om.nodes.adh: om_tsn-adh-k8s-1,om_tsn-adh-k8s-2,om_tsn-adh-k8s-3
      ozone.om.service.ids: adhom

  ## Kerberos configuration for authentication.
  #kerberos:
  #  realm: EXAMPLE.COM
  #
  #  # Service name in the Kerberos principal. Defaults to the product name.
  #  service: impala
  #
  #  # Hostname in the Kerberos principal.
  #  # Required for a fixed service principal; leave it empty only to derive one principal per pod from the cluster domain.
  #  hostname: kerberos.example.com
  #  keytab:
  #    # true - kerberos-operator creates the keytab Secret.
  #    # false (default) - reference an existing keytab Secret with name keytab.secretName.
  #    create: false
  #
  #    # Name of the keytab Secret.
  #    # Optional when create: true - names the generated Secret (default: <name>-keytab).
  #    # Required when create: false - must reference an existing Secret.
  #    secretName: kerberos-secret
  #
  #    # Label selector for the Pod that generates the keytab.
  #    # Required when create: true; ignored when create: false.
  #    labelSelector:
  #      env: prod
  #    #additionalPrincipals:
  #    #  - HTTP/kerberos.example.com
  #
  #    clusterDomain: cluster.local
  #    rotation:
  #      interval: 24h
  #      checkInterval: 1h

  ## LDAP authentication configuration.
  ## Uncomment and fill url and userBindPattern.
  ## For ldaps:// URLs the ssl: or ca: section must also be configured (depends on product)
  #ldap:
  #  # LDAP service url.
  #  url: ldaps://ldap.example.com:636
  #
  #  # LDAP user Bind pattern.
  #  userBindPattern: uid=#UID,cn=users,dc=example,dc=com

  ## Ranger plugin configuration.
  ## Uncomment and fill the lines below. adc apply derives the rest.
  #ranger:
  #  # fill ranger.plugin.impala.policy.rest.url below with Ranger endpoint, e.g. https://adps-adc.ru-central1.internal:6182
  #  # fill ranger.plugin.impala.service.name below with Ranger service name you want to use for product, e.g. adc_impala_id_1
  #  security:
  #    ranger.plugin.impala.policy.rest.url: ""
  #    ranger.plugin.impala.service.name: ""
  #
  #  # fill xasecure.audit.destination.solr.zookeepers below with Zookeepers endpoints to resolve solr service, e.g. adps-adc.ru-central1.internal:2181/Arenadata.Hadoop-2.solr.server
  #  audit:
  #    xasecure.audit.destination.solr.zookeepers: ""
  #
  #  # Local Ranger files 'adc apply' writes into the configs Secret.
  #  # Relative paths are resolved against the config file.
  #  files:
  #    jceksStorePath: /path/to/ranger.jceks

  ## Java KeyStore/TrustStore certificate configuration.
  ## Set externalSecretName to reference an existing Secret,
  ## or set files and optional secretName to have ADC create it.
  #ssl:
  #  ## Name of the Secret containing Java keystores.
  #  #secretName: custom-ssl-secret
  #  externalSecretName: existing-ssl-secret
  #
  #  # Key in the Secret containing the truststore file.
  #  trustStoreKey: truststore.jks
  #
  #  ## Password for the truststore (optional).
  #  #trustStorePassword: bigdata
  #
  #  ## Key in the Secret containing the keystore file (optional).
  #  #keyStoreKey: keystore.jks
  #
  #  ## Password for the keystore (optional).
  #  #keyStorePassword: bigdata
  #
  #  ## Local files 'adc apply' puts into the Secret named by ssl.secretName.
  #  ## Relative paths are resolved against the config file.
  #  #files:
  #  #  trustStorePath: /path/to/truststore.jks
  #  #  #keyStorePath: /path/to/keystore.jks

  ## Use an external complete configs Secret instead of the one rendered by ADC.
  #configsSecret:
  #  # Use a Secret managed outside ADC.
  #  externalSecretName: existing-impala-configs
  #
  #  ## Or let ADC create the Secret.
  #  #secretName: custom-impala-configs

  catalog:
    replicas: 1
    #resources:
    #  limits:
    #    cpu: "2"
    #    memory: 8Gi
    #  requests:
    #    cpu: 300m
    #    memory: 384Mi

    ## Component arguments. Key-value pairs passed to the component configuration.
    #args:
    #  redirect_stdout_stderr: "false"

    ## Environment variables passed to the component container.
    #envs:
    #  - name: JAVA_TOOL_OPTIONS
    #    value: |-
    #      -Djavax.net.ssl.trustStore=/etc/ssl/truststore.jks
    #      -Djavax.net.ssl.trustStorePassword=bigdata
  coordinator:
    replicas: 1
    #resources:
    #  limits:
    #    cpu: "2"
    #    memory: 8Gi
    #  requests:
    #    cpu: 300m
    #    memory: 384Mi

    ## Component arguments. Key-value pairs passed to the component configuration.
    #args:
    #  redirect_stdout_stderr: "false"

    ## Environment variables passed to the component container.
    #envs:
    #  - name: JAVA_TOOL_OPTIONS
    #    value: |-
    #      -Djavax.net.ssl.trustStore=/etc/ssl/truststore.jks
    #      -Djavax.net.ssl.trustStorePassword=bigdata
  executor:
    replicas: 1
    #resources:
    #  limits:
    #    cpu: "2"
    #    memory: 8Gi
    #  requests:
    #    cpu: 300m
    #    memory: 384Mi

    ## Component arguments. Key-value pairs passed to the component configuration.
    #args:
    #  redirect_stdout_stderr: "false"

    ## Environment variables passed to the component container.
    #envs:
    #  - name: JAVA_TOOL_OPTIONS
    #    value: |-
    #      -Djavax.net.ssl.trustStore=/etc/ssl/truststore.jks
    #      -Djavax.net.ssl.trustStorePassword=bigdata
  statestore:
    replicas: 1
    #resources:
    #  limits:
    #    cpu: "2"
    #    memory: 8Gi
    #  requests:
    #    cpu: 300m
    #    memory: 384Mi

    ## Component arguments. Key-value pairs passed to the component configuration.
    #args:
    #  redirect_stdout_stderr: "false"

    ## Environment variables passed to the component container.
    #envs:
    #  - name: JAVA_TOOL_OPTIONS
    #    value: |-
    #      -Djavax.net.ssl.trustStore=/etc/ssl/truststore.jks
    #      -Djavax.net.ssl.trustStorePassword=bigdata

  ## Monitoring configuration.
  #monitoring:
  #  # Enables Prometheus metrics export from this product's pods.
  #  exportMetrics: true

  ## Admission-control resource pools. Rendered into a coordinator-only Secret (fair-scheduler.xml and optional llama-site.xml) mounted at /opt/impala/resource-pools.
  #resourcePools:
  #  # Fair-scheduler queue tree and placement policy, rendered to fair-scheduler.xml.
  #  allocations:
  #    # Queue tree, rooted at a single queue.
  #    queues:
  #      - aclSubmitApps: ' '
  #        name: root
  #        queues:
  #        - aclSubmitApps: '*'
  #          maxResources:
  #            memory: 50000
  #            vcores: 0
  #          name: default
  #          type: leaf
  #        type: parent
  #
  #    # Rules that route an incoming query to a queue.
  #    queuePlacementPolicy:
  #      rules:
  #        - create: false
  #          name: specified
  #        - name: default
  #
  #  # Raw llama-site.xml properties, rendered verbatim in list order.
  #  llamaProperties:
  #    # List of name/value pairs written to llama-site.xml.
  #    properties:
  #      - name: llama.am.throttling.maximum.placed.reservations.root.default
  #        value: "10"

  ## TLS certificate configuration.
  ## Set externalSecretName to reference an existing Secret,
  ## or set files and optional secretName to have ADC create it.
  #tls:
  #  ## Optional name of the Secret ADC creates from local files.
  #  #secretName: custom-tls-secret
  #  externalSecretName: existing-tls-secret
  #
  #  # Key in the Secret containing the TLS certificate.
  #  certificateKey: tls.crt
  #
  #  # Key in the Secret containing the TLS private key.
  #  privateKey: tls.key
  #
  #  ## Key in the Secret containing the client CA certificate.
  #  #clientCaCertificate: ca.crt
  #
  #  ## Local files 'adc apply' puts into the Secret named by tls.secretName.
  #  ## Relative paths are resolved against the config file.
  #  #files:
  #  #  certificatePath: /path/to/tls.crt
  #  #  privateKeyPath: /path/to/tls.key
  #  #  #clientCaCertificatePath: /path/to/ca.crt

  ## TLS certificate configuration for web UI and HTTP endpoints.
  ## Set externalSecretName to reference an existing Secret,
  ## or set files and optional secretName to have ADC create it.
  #webTLS:
  #  ## Optional name of the Secret ADC creates from local files.
  #  #secretName: custom-web-tls-secret
  #  externalSecretName: existing-web-tls-secret
  #
  #  # Key in the Secret containing the web TLS certificate.
  #  certificateKey: tls.crt
  #
  #  # Key in the Secret containing the web TLS private key.
  #  privateKey: tls.key
  #
  #  ## Local files 'adc apply' puts into the Secret named by webTLS.secretName.
  #  ## Relative paths are resolved against the config file.
  #  #files:
  #  #  certificatePath: /path/to/tls.crt
  #  #  privateKeyPath: /path/to/tls.key

  ## CA certificate configuration for Impala.
  ## Set externalSecretName, or let ADC create a Secret from files.
  #ca:
  #  ## Optional name of the Secret ADC creates from a local file.
  #  #secretName: custom-ca-secret
  #  externalSecretName: existing-ca-secret
  #
  #  # Key in the Secret containing the CA certificate.
  #  certificateKey: ca.crt
  #
  #  ## Local files 'adc apply' puts into the Secret named by ca.secretName.
  #  ## Relative paths are resolved against the config file.
  #  #files:
  #  #  certificatePath: /path/to/ca.pem

  ## Controls whether Secret/ConfigMap changes restart pods.
  ## Set enabled: false to update referenced Secrets without restarting
  ## the workload; pods keep running the previous configuration until
  ## the policy is re-enabled. Defaults to enabled.
  #configurationRollout:
  #  enabled: false
    1 Пространство имен, используемое кластером Impala.
    2 Настройки для загрузки образа кластера Impala.
    3 Настройки Hadoop, взятые из ранее созданного файла hadoop_conf.yaml.
    apiVersion: adc.arenadata.io/v1alpha1
kind: ImpalaCluster
metadata:
  name: impala
  namespace: impala (1)
spec:
  image: hub.arenadata.io/adc-enterprise/impala:<tag> (2)

  ## Image pull secret for a private registry.
  ## Set 'externalSecretName' to reference an existing Secret,
  ## or set 'credentials' and optionally 'secretName' to let the CLI create one.
  #imagePullSecret:
  #  # Use a Secret managed outside ADC.
  #  externalSecretName: existing-registry-secret
  #
  #  ## Or let ADC create the Secret.
  #  #secretName: custom-registry-secret
  #
  #  #credentials:
  #  #  registry: registry.example.com
  #  #  username: user
  #  #  password: pass

  hadoop: (3)
    core:
      fs.defaultFS: s3a://demo-s3
      fs.s3a.access.key: p.petrov@RU-CENTRAL1.INTERNAL
      fs.s3a.impl: org.apache.hadoop.fs.s3a.S3AFileSystem
      fs.s3a.secret.key: 3ab197f82fac43374519b4ad3015a76c778acf51897cf73f409ecba827e64255
    hive:
      fs.s3a.endpoint: http://adh-ctrl-nia-02.ru-central1.internal:9878
      fs.s3a.path.style.access: "true"
      hive.metastore.uris: thrift://hms-adh-nia-01.ru-central1.internal:9083
      hive.metastore.warehouse.dir: s3a://demo-s3/apps/hive/warehouse
      metastore.use.SSL: "false"

  ## Kerberos configuration for authentication.
  #kerberos:
  #  realm: EXAMPLE.COM
  #
  #  # Service name in the Kerberos principal. Defaults to the product name.
  #  service: impala
  #
  #  # Hostname in the Kerberos principal.
  #  # Required for a fixed service principal; leave it empty only to derive one principal per pod from the cluster domain.
  #  hostname: kerberos.example.com
  #  keytab:
  #    # true - kerberos-operator creates the keytab Secret.
  #    # false (default) - reference an existing keytab Secret with name keytab.secretName.
  #    create: false
  #
  #    # Name of the keytab Secret.
  #    # Optional when create: true - names the generated Secret (default: <name>-keytab).
  #    # Required when create: false - must reference an existing Secret.
  #    secretName: kerberos-secret
  #
  #    # Label selector for the Pod that generates the keytab.
  #    # Required when create: true; ignored when create: false.
  #    labelSelector:
  #      env: prod
  #    #additionalPrincipals:
  #    #  - HTTP/kerberos.example.com
  #
  #    clusterDomain: cluster.local
  #    rotation:
  #      interval: 24h
  #      checkInterval: 1h

  ## LDAP authentication configuration.
  ## Uncomment and fill url and userBindPattern.
  ## For ldaps:// URLs the ssl: or ca: section must also be configured (depends on product)
  #ldap:
  #  # LDAP service url.
  #  url: ldaps://ldap.example.com:636
  #
  #  # LDAP user Bind pattern.
  #  userBindPattern: uid=#UID,cn=users,dc=example,dc=com

  ## Ranger plugin configuration.
  ## Uncomment and fill the lines below. adc apply derives the rest.
  #ranger:
  #  # fill ranger.plugin.impala.policy.rest.url below with Ranger endpoint, e.g. https://adps-adc.ru-central1.internal:6182
  #  # fill ranger.plugin.impala.service.name below with Ranger service name you want to use for product, e.g. adc_impala_id_1
  #  security:
  #    ranger.plugin.impala.policy.rest.url: ""
  #    ranger.plugin.impala.service.name: ""
  #
  #  # fill xasecure.audit.destination.solr.zookeepers below with Zookeepers endpoints to resolve solr service, e.g. adps-adc.ru-central1.internal:2181/Arenadata.Hadoop-2.solr.server
  #  audit:
  #    xasecure.audit.destination.solr.zookeepers: ""
  #
  #  # Local Ranger files 'adc apply' writes into the configs Secret.
  #  # Relative paths are resolved against the config file.
  #  files:
  #    jceksStorePath: /path/to/ranger.jceks

  ## Java KeyStore/TrustStore certificate configuration.
  ## Set externalSecretName to reference an existing Secret,
  ## or set files and optional secretName to have ADC create it.
  #ssl:
  #  ## Name of the Secret containing Java keystores.
  #  #secretName: custom-ssl-secret
  #  externalSecretName: existing-ssl-secret
  #
  #  # Key in the Secret containing the truststore file.
  #  trustStoreKey: truststore.jks
  #
  #  ## Password for the truststore (optional).
  #  #trustStorePassword: bigdata
  #
  #  ## Key in the Secret containing the keystore file (optional).
  #  #keyStoreKey: keystore.jks
  #
  #  ## Password for the keystore (optional).
  #  #keyStorePassword: bigdata
  #
  #  ## Local files 'adc apply' puts into the Secret named by ssl.secretName.
  #  ## Relative paths are resolved against the config file.
  #  #files:
  #  #  trustStorePath: /path/to/truststore.jks
  #  #  #keyStorePath: /path/to/keystore.jks

  ## Use an external complete configs Secret instead of the one rendered by ADC.
  #configsSecret:
  #  # Use a Secret managed outside ADC.
  #  externalSecretName: existing-impala-configs
  #
  #  ## Or let ADC create the Secret.
  #  #secretName: custom-impala-configs

  catalog:
    replicas: 1
    #resources:
    #  limits:
    #    cpu: "2"
    #    memory: 8Gi
    #  requests:
    #    cpu: 300m
    #    memory: 384Mi

    ## Component arguments. Key-value pairs passed to the component configuration.
    #args:
    #  redirect_stdout_stderr: "false"

    ## Environment variables passed to the component container.
    #envs:
    #  - name: JAVA_TOOL_OPTIONS
    #    value: |-
    #      -Djavax.net.ssl.trustStore=/etc/ssl/truststore.jks
    #      -Djavax.net.ssl.trustStorePassword=bigdata
  coordinator:
    replicas: 1
    #resources:
    #  limits:
    #    cpu: "2"
    #    memory: 8Gi
    #  requests:
    #    cpu: 300m
    #    memory: 384Mi

    ## Component arguments. Key-value pairs passed to the component configuration.
    #args:
    #  redirect_stdout_stderr: "false"

    ## Environment variables passed to the component container.
    #envs:
    #  - name: JAVA_TOOL_OPTIONS
    #    value: |-
    #      -Djavax.net.ssl.trustStore=/etc/ssl/truststore.jks
    #      -Djavax.net.ssl.trustStorePassword=bigdata
  executor:
    replicas: 1
    #resources:
    #  limits:
    #    cpu: "2"
    #    memory: 8Gi
    #  requests:
    #    cpu: 300m
    #    memory: 384Mi

    ## Component arguments. Key-value pairs passed to the component configuration.
    #args:
    #  redirect_stdout_stderr: "false"

    ## Environment variables passed to the component container.
    #envs:
    #  - name: JAVA_TOOL_OPTIONS
    #    value: |-
    #      -Djavax.net.ssl.trustStore=/etc/ssl/truststore.jks
    #      -Djavax.net.ssl.trustStorePassword=bigdata
  statestore:
    replicas: 1
    #resources:
    #  limits:
    #    cpu: "2"
    #    memory: 8Gi
    #  requests:
    #    cpu: 300m
    #    memory: 384Mi

    ## Component arguments. Key-value pairs passed to the component configuration.
    #args:
    #  redirect_stdout_stderr: "false"

    ## Environment variables passed to the component container.
    #envs:
    #  - name: JAVA_TOOL_OPTIONS
    #    value: |-
    #      -Djavax.net.ssl.trustStore=/etc/ssl/truststore.jks
    #      -Djavax.net.ssl.trustStorePassword=bigdata

  ## Monitoring configuration.
  #monitoring:
  #  # Enables Prometheus metrics export from this product's pods.
  #  exportMetrics: true

  ## Admission-control resource pools. Rendered into a coordinator-only Secret (fair-scheduler.xml and optional llama-site.xml) mounted at /opt/impala/resource-pools.
  #resourcePools:
  #  # Fair-scheduler queue tree and placement policy, rendered to fair-scheduler.xml.
  #  allocations:
  #    # Queue tree, rooted at a single queue.
  #    queues:
  #      - aclSubmitApps: ' '
  #        name: root
  #        queues:
  #        - aclSubmitApps: '*'
  #          maxResources:
  #            memory: 50000
  #            vcores: 0
  #          name: default
  #          type: leaf
  #        type: parent
  #
  #    # Rules that route an incoming query to a queue.
  #    queuePlacementPolicy:
  #      rules:
  #        - create: false
  #          name: specified
  #        - name: default
  #
  #  # Raw llama-site.xml properties, rendered verbatim in list order.
  #  llamaProperties:
  #    # List of name/value pairs written to llama-site.xml.
  #    properties:
  #      - name: llama.am.throttling.maximum.placed.reservations.root.default
  #        value: "10"

  ## TLS certificate configuration.
  ## Set externalSecretName to reference an existing Secret,
  ## or set files and optional secretName to have ADC create it.
  #tls:
  #  ## Optional name of the Secret ADC creates from local files.
  #  #secretName: custom-tls-secret
  #  externalSecretName: existing-tls-secret
  #
  #  # Key in the Secret containing the TLS certificate.
  #  certificateKey: tls.crt
  #
  #  # Key in the Secret containing the TLS private key.
  #  privateKey: tls.key
  #
  #  ## Key in the Secret containing the client CA certificate.
  #  #clientCaCertificate: ca.crt
  #
  #  ## Local files 'adc apply' puts into the Secret named by tls.secretName.
  #  ## Relative paths are resolved against the config file.
  #  #files:
  #  #  certificatePath: /path/to/tls.crt
  #  #  privateKeyPath: /path/to/tls.key
  #  #  #clientCaCertificatePath: /path/to/ca.crt

  ## TLS certificate configuration for web UI and HTTP endpoints.
  ## Set externalSecretName to reference an existing Secret,
  ## or set files and optional secretName to have ADC create it.
  #webTLS:
  #  ## Optional name of the Secret ADC creates from local files.
  #  #secretName: custom-web-tls-secret
  #  externalSecretName: existing-web-tls-secret
  #
  #  # Key in the Secret containing the web TLS certificate.
  #  certificateKey: tls.crt
  #
  #  # Key in the Secret containing the web TLS private key.
  #  privateKey: tls.key
  #
  #  ## Local files 'adc apply' puts into the Secret named by webTLS.secretName.
  #  ## Relative paths are resolved against the config file.
  #  #files:
  #  #  certificatePath: /path/to/tls.crt
  #  #  privateKeyPath: /path/to/tls.key

  ## CA certificate configuration for Impala.
  ## Set externalSecretName, or let ADC create a Secret from files.
  #ca:
  #  ## Optional name of the Secret ADC creates from a local file.
  #  #secretName: custom-ca-secret
  #  externalSecretName: existing-ca-secret
  #
  #  # Key in the Secret containing the CA certificate.
  #  certificateKey: ca.crt
  #
  #  ## Local files 'adc apply' puts into the Secret named by ca.secretName.
  #  ## Relative paths are resolved against the config file.
  #  #files:
  #  #  certificatePath: /path/to/ca.pem

  ## Controls whether Secret/ConfigMap changes restart pods.
  ## Set enabled: false to update referenced Secrets without restarting
  ## the workload; pods keep running the previous configuration until
  ## the policy is re-enabled. Defaults to enabled.
  #configurationRollout:
  #  enabled: false
    1 Пространство имен, используемое кластером Impala.
    2 Настройки для загрузки образа кластера Impala.
    3 Настройки Hadoop, взятые из ранее созданного файла hadoop_conf.yaml.

  4. Вы можете проверить конфигурацию перед ее применением, выполнив команду apply с флагом --dry-run:

    $ ./adc apply -f impala-cluster.yaml --dry-run > impala-cluster-render.yaml
    impala-cluster-render.yaml
    ---
apiVersion: v1
kind: Secret
metadata:
  name: impala-configs
  namespace: impala
stringData:
  core-site.xml: |-
    <configuration>
      <property>
        <name>dfs.client.failover.proxy.provider.adh</name>
        <value>org.apache.hadoop.hdfs.server.namenode.ha.ObserverReadProxyProvider</value>
      </property>
      <property>
        <name>dfs.client.read.shortcircuit</name>
        <value>false</value>
      </property>
      <property>
        <name>dfs.ha.namenodes.adh</name>
        <value>nn_tsn-adh-k8s-1,nn_tsn-adh-k8s-3</value>
      </property>
      <property>
        <name>dfs.namenode.rpc-address.adh.nn_tsn-adh-k8s-1</name>
        <value>tsn-adh-k8s-1.ru-central1.internal:8020</value>
      </property>
      <property>
        <name>dfs.namenode.rpc-address.adh.nn_tsn-adh-k8s-3</name>
        <value>tsn-adh-k8s-3.ru-central1.internal:8020</value>
      </property>
      <property>
        <name>dfs.nameservices</name>
        <value>adh</value>
      </property>
      <property>
        <name>fs.defaultFS</name>
        <value>hdfs://adh</value>
      </property>
      <property>
        <name>hadoop.security.authentication</name>
        <value>simple</value>
      </property>
      <property>
        <name>ozone.om.address.adh.om_tsn-adh-k8s-1</name>
        <value>tsn-adh-k8s-1.ru-central1.internal:9862</value>
      </property>
      <property>
        <name>ozone.om.address.adh.om_tsn-adh-k8s-2</name>
        <value>tsn-adh-k8s-2.ru-central1.internal:9862</value>
      </property>
      <property>
        <name>ozone.om.address.adh.om_tsn-adh-k8s-3</name>
        <value>tsn-adh-k8s-3.ru-central1.internal:9862</value>
      </property>
      <property>
        <name>ozone.om.nodes.adh</name>
        <value>om_tsn-adh-k8s-1,om_tsn-adh-k8s-2,om_tsn-adh-k8s-3</value>
      </property>
      <property>
        <name>ozone.om.service.ids</name>
        <value>adhom</value>
      </property>
    </configuration>
  hive-site.xml: |-
    <configuration>
      <property>
        <name>hive.metastore.sasl.enabled</name>
        <value>false</value>
      </property>
      <property>
        <name>hive.metastore.uris</name>
        <value>thrift://tsn-adh-k8s-1.ru-central1.internal:9083</value>
      </property>
      <property>
        <name>metastore.use.SSL</name>
        <value>false</value>
      </property>
    </configuration>
type: Opaque
---
apiVersion: impala.arenadata.io/v1alpha1
kind: Cluster
metadata:
  name: impala
  namespace: impala
spec:
  catalog:
    metadata: {}
    replicas: 1
    spec:
      image: hub.arenadata.io/adc-enterprise/impala:<tag>
      imagePullPolicy: Always
  coordinator:
    metadata: {}
    replicas: 1
    spec:
      image: hub.arenadata.io/adc-enterprise/impala:<tag>
      imagePullPolicy: Always
  executor:
    metadata: {}
    replicas: 1
    spec:
      image: hub.arenadata.io/adc-enterprise/impala:<tag>
      imagePullPolicy: Always
  hadoopConfigsSecretName: impala-configs
  statestore:
    metadata: {}
    replicas: 1
    spec:
      image: hub.arenadata.io/adc-enterprise/impala:<tag>
      imagePullPolicy: Always
status: {}

  5. Если манифест корректный, примените конфигурацию и разверните кластер Impala:

    $ ./adc apply -f impala-cluster.yaml

    Ожидаемый вывод содержит сообщение с подтверждением успеха:

    time="20260518133858UTC" level="info" msg="cluster impala applied to namespace impala"

  6. Проверьте работоспособность подов кластера Impala:

    $ kubectl get pods -n impala

    Ожидаемый вывод должен быть похож на следующий:

    NAME                   READY   STATUS    RESTARTS   AGE
impala-catalog-0       1/1     Running   0          70m
impala-coordinator-0   1/1     Running   0          70m
impala-executor-0      1/1     Running   0          70m
impala-statestore-0    1/1     Running   0          70m

Шаг 3. Предоставление доступа к Impala через JDBC

Для внешнего доступа к Impala по JDBC необходимо настроить один из способов публикации сервиса, например, используя балансировщик нагрузки (load balancer) или Ingress-контроллер.

Все настройки, связанные с публикацией сервиса, включая DNS, аннотации, параметры Ingress, правила балансировщика и прочие, должны быть указаны в соответствии с вашей инфраструктурой Kubernetes.

  1. Получите внешний адрес балансировщика или Ingress-контроллера. Например:

    impala-lb                    LoadBalancer   10.96.231.158   10.92.42.144   21050:32154/TCP,26000:30753/TCP,24000:32645/TCP   25h

  2. Добавьте следующую строку в файл /etc/hosts:

    <lb_ip> impala-jdbc.ru-central1.internal

    где <lb_ip> — внешний IP-адрес балансировщика нагрузки. В данном примере это 10.92.42.144.

  3. Подключитесь к кластеру Impala через JDBC, например, с помощью DBeaver. Строка подключения JDBC имеет следующий вид:

    jdbc:impala://impala-jdbc.ru-central1.internal:21050/default

  4. Установив подключение, выполните тестовую команду для проверки работоспособности кластера:

    SHOW DATABASES;

    Ожидаемый вывод:

    name            |comment                                     |
----------------+--------------------------------------------+
_impala_builtins|System database for Impala builtin functions|
default         |Default Hive database                       |

Шаг 4. Предоставление доступа к веб-интерфейсу Impala

Для доступа к веб-интерфейсу Impala необходимо настроить один из способов публикации сервиса, например, используя балансировщик нагрузки (load balancer) или Ingress-контроллер. Все настройки, связанные с публикацией сервиса, включая DNS, аннотации, параметры Ingress, правила балансировщика и прочие, должны быть указаны в соответствии с вашей инфраструктурой Kubernetes.

  1. Получите внешний адрес балансировщика или Ingress-контроллера. Например:

    NAME             CLASS   HOSTS                               ADDRESS       PORTS   AGE
impala-ingress   nginx   impala-cloud.ru-central1.internal   10.92.41.95   80      8m45s

  2. Добавьте следующую строку в файл /etc/hosts:

    <ingress_ip> impala-cloud.ru-central1.internal

    где <ingress_ip> — внешний IP-адрес контроллера Ingress. В данном примере это 10.92.41.95.

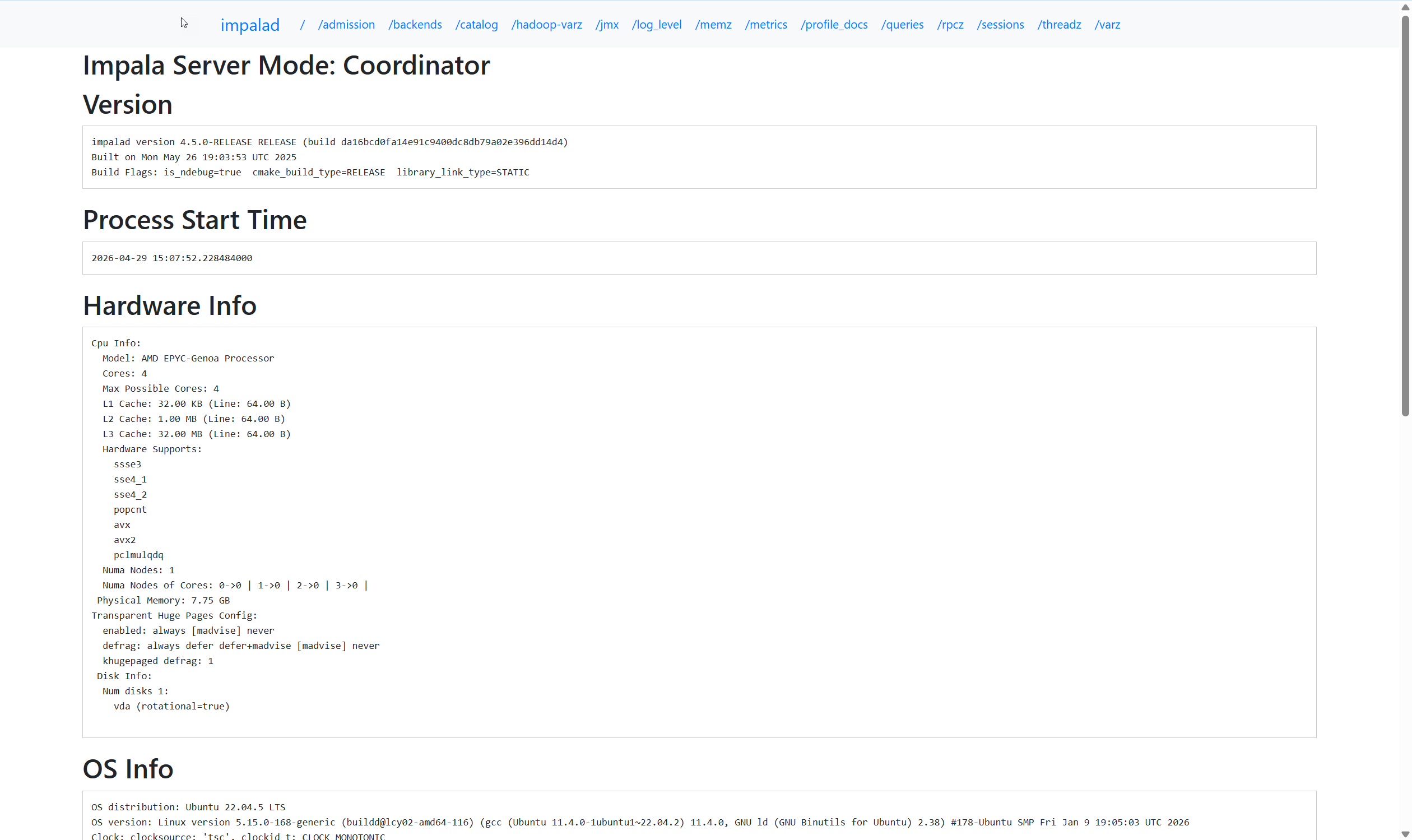

  3. Откройте веб-интерфейс Impala в браузере, используя URL http://impala-cloud.ru-central1.internal (измените протокол на https, если используете Kerberos и SSL).

    Веб-интерфейс Impala
    Веб-интерфейс Impala
    Веб-интерфейс Impala
    Веб-интерфейс Impala

Удаление инстансов

ВАЖНО

Удалять оператор следует только после удаления всех управляемых им ресурсов.

Чтобы удалить кластер Impala, запустите следующую команду:

$ ./adc delete -f impala-cluster.yaml

Чтобы удалить оператор Impala, запустите следующую команду:

$ ./adc delete -f impala-operator.yaml
Нашли ошибку? Выделите текст и нажмите Ctrl+Enter чтобы сообщить о ней
