Add/Remove components

NOTE
The Add/Remove components action is available for the Monitoring service.

This action opens the component-host mapping interface, where you can add and remove components of the Monitoring service.

To run the action, go to the Clusters page, click an ADPG cluster, and switch to the Services tab. Click actions default dark actions default light in the Actions column and select the action from the drop-down list that appears.

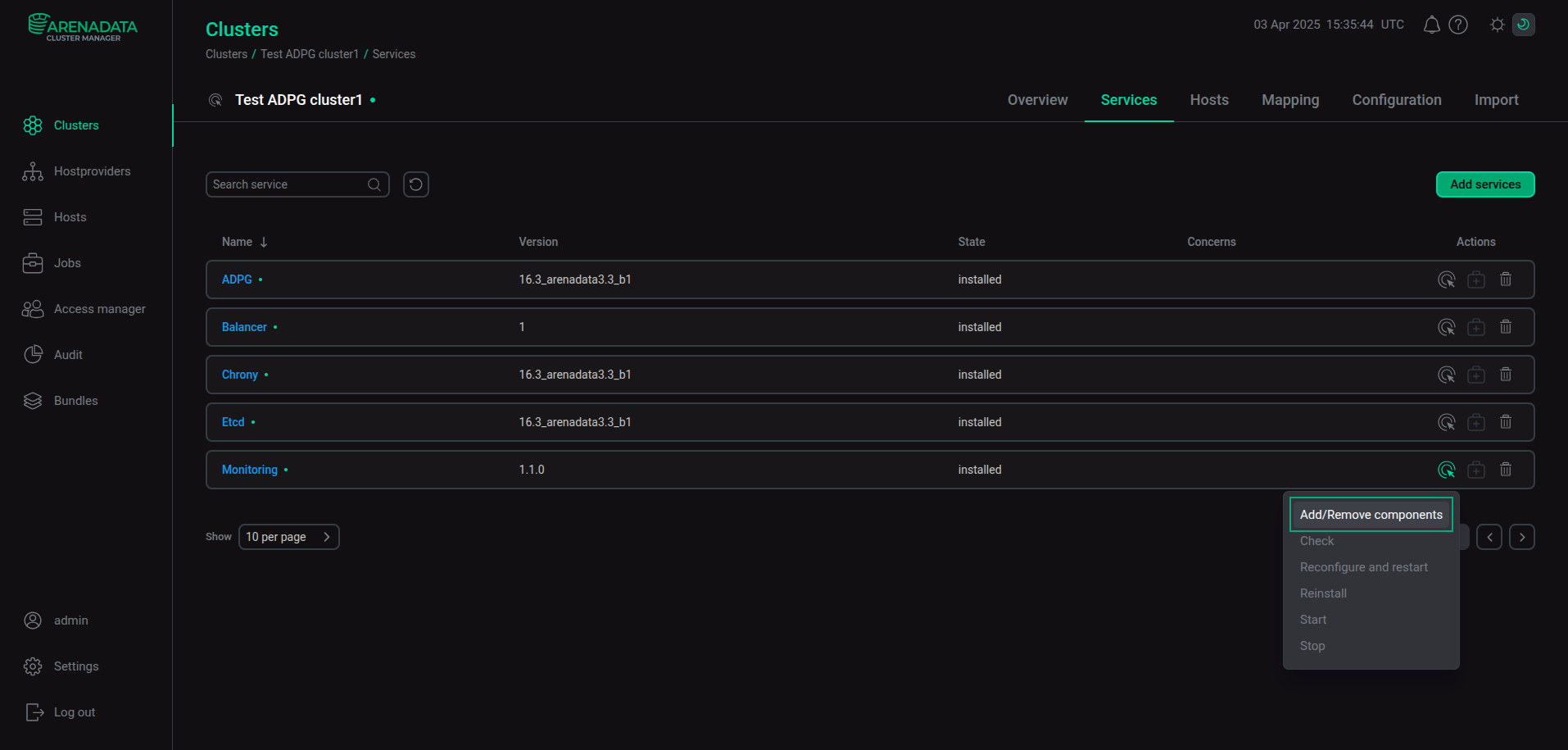

Execute the Add/Remove components action
Execute the "Add/Remove components" action

The component-host mapping interface is opened.

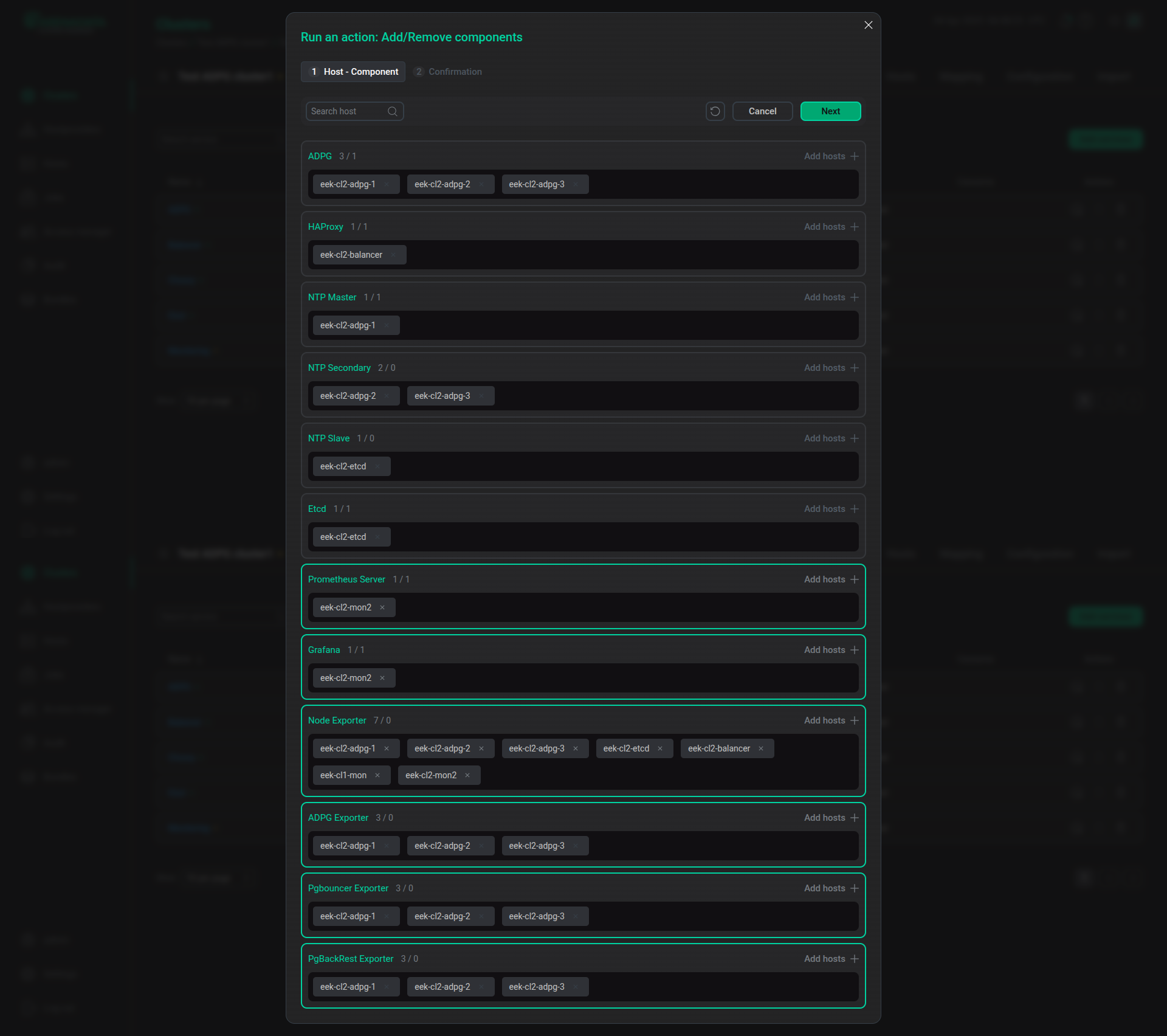

The component-host mapping interface
The component-host mapping interface

Only components of the Monitoring service are available for editing.

You can click Add hosts and select a host for the component from the list that appears. It is also possible to remove hosts from a component, if this component is not required. If the host can be deleted, it will display a gray cross on the right side.

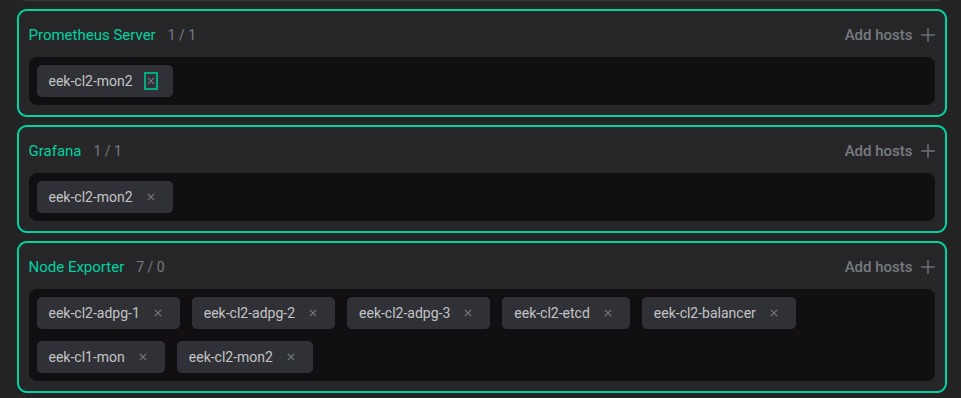

Components that can be removed
Components that can be removed

After you redistribute components, click Next located at the top of the window. ADCM displays a dialog window to confirm the action. In this dialog window, you can select the Verbose checkbox to see additional execution details on the Jobs page. Click Run to run the action.

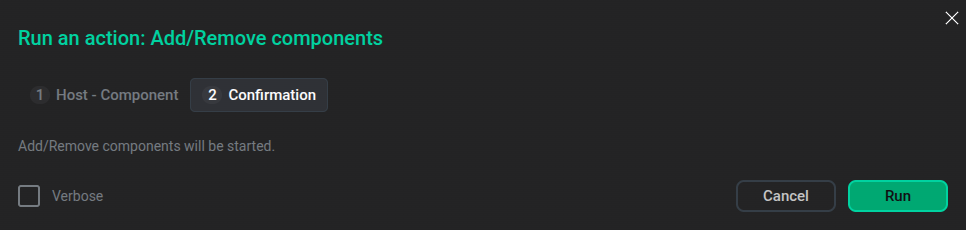

The Run an action window
The "Run an action" window
