Configure a cluster

Elena Dvoryadkina, Daria Barysheva
IMPORTANT
There is usually no need to change cluster configuration parameters. You can leave all parameters at the default values.

After creation a new cluster, you can configure it by performing the following steps:

  1. Select a cluster on the Clusters page. To do this, click a cluster name in the Name column.

    Select a cluster
    Select a cluster

  2. Open the Configuration tab on the cluster page. The Configuration tab includes the following sections: Primary configuration, Configuration groups, Ansible settings.

  3. Fill in all necessary parameters on the selected tab and click Save.

Primary configuration

The Configuration → Primary configuration tab allows you to configure the general cluster settings.

ADQM Control cluster configuration parameters are listed below:

  • Reliability control — the section with the following settings (visible if the Show advanced option is enabled):

    • retries — number of retries for cluster operations (3 by default);

    • delay — delay between retries in seconds (10 by default);

    • timeout — timeout for checks of network ports in seconds (60 by default).

  • Paths to the repositories that are used during the installation process — depending on the cluster operating system (Centos, Alt Linux, Red Hat, RED OS, Astra Linux, or Ubuntu):

    • ADQMC_arenadata_community — repository required to install the Community edition of ADQM Control;

    • arenadata_postgres — repository required to install Arenadata PostgreSQL;

    • prometheus_repo — repository required to install Prometheus;

    • ADQMC_arenadata_enterprise — repository required to install the Enterprise edition of ADQM Control.

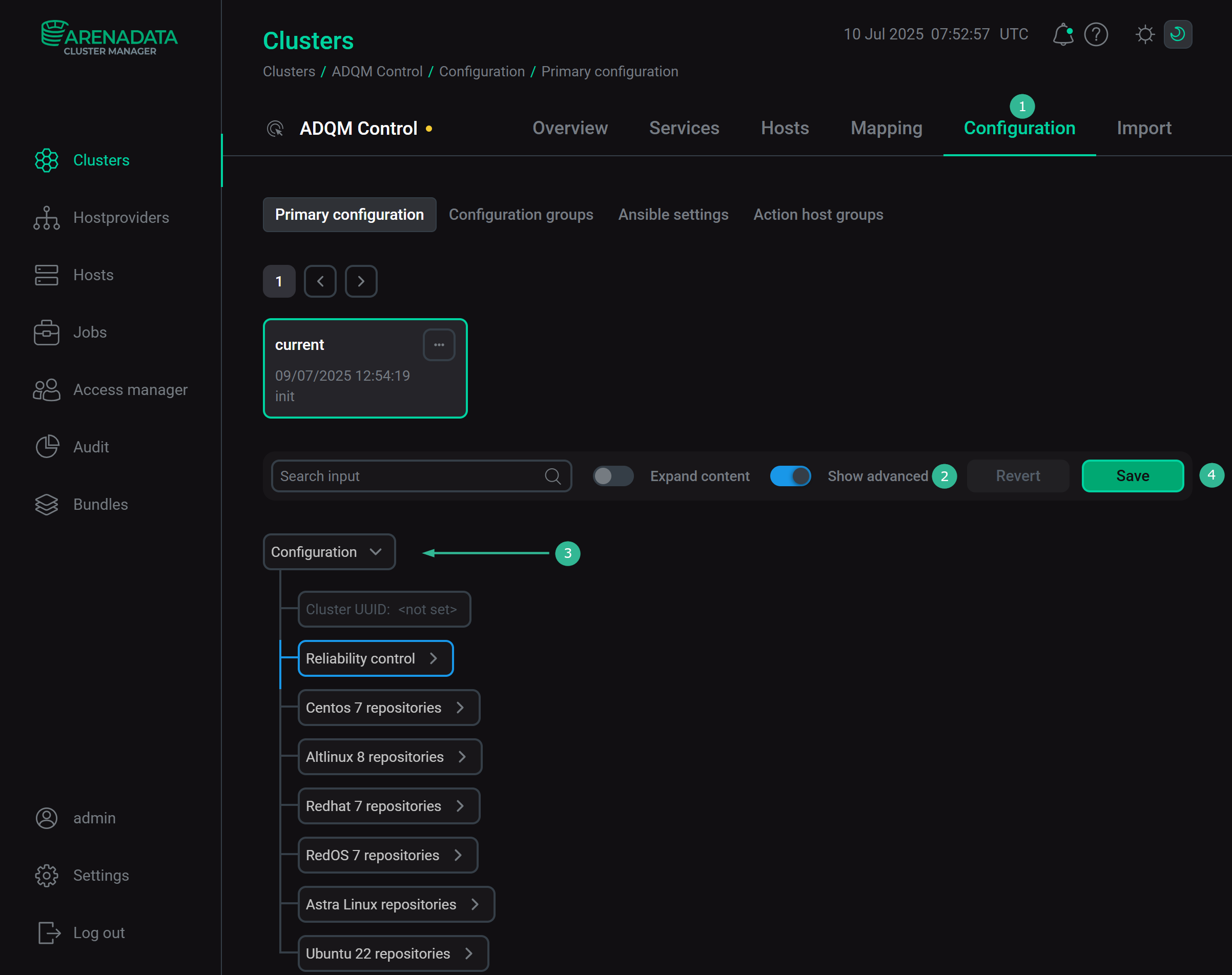

Cluster configuration window
Cluster configuration window

Configuration groups

The Configuration → Configuration groups tab is designed to set cluster configuration groups.

Ansible settings

The Configuration → Ansible settings tab allows you to set Ansible configuration options at the cluster level. The tab is available starting with ADCM 2.2.0.

Ansible settings
Name Description Default

forks

The number of parallel processes to spawn when communicating with remote hosts

5
NOTE

During offline installation, these parameters are ignored. The data stored locally in the Enterprise Tools cluster is used instead.
