Add services

In ADCM a service means a software that performs some function. The steps for adding services to a cluster are listed below:

  1. Select a cluster on the Clusters page. To do this, click a cluster name in the Name column.

    Select a cluster
    Select a cluster
  2. Open the Services tab on the cluster page and click Add service.

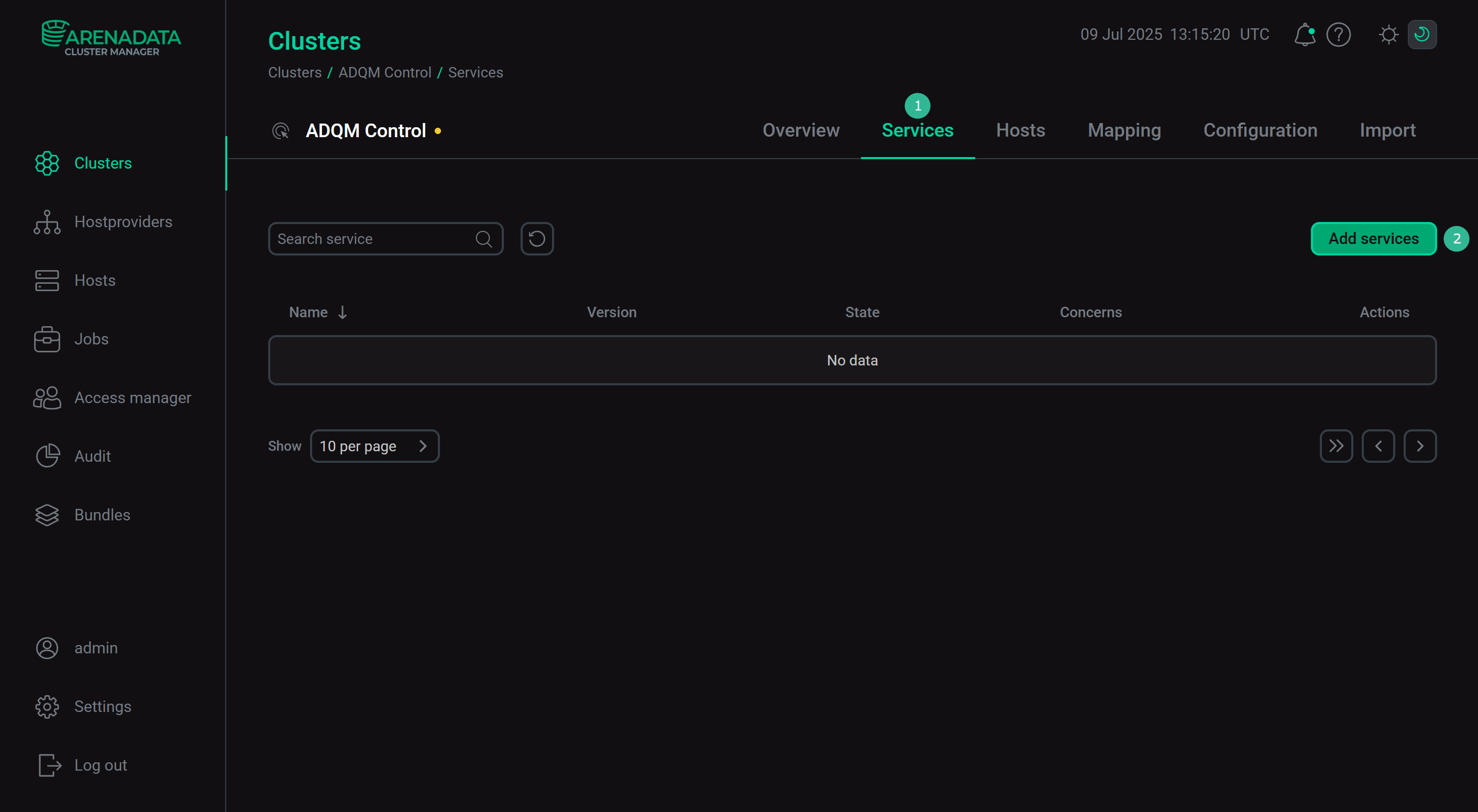

    Switch to adding services
    Switch to adding services
  3. In the opened dialog, select services that should be added to the cluster and click Add.

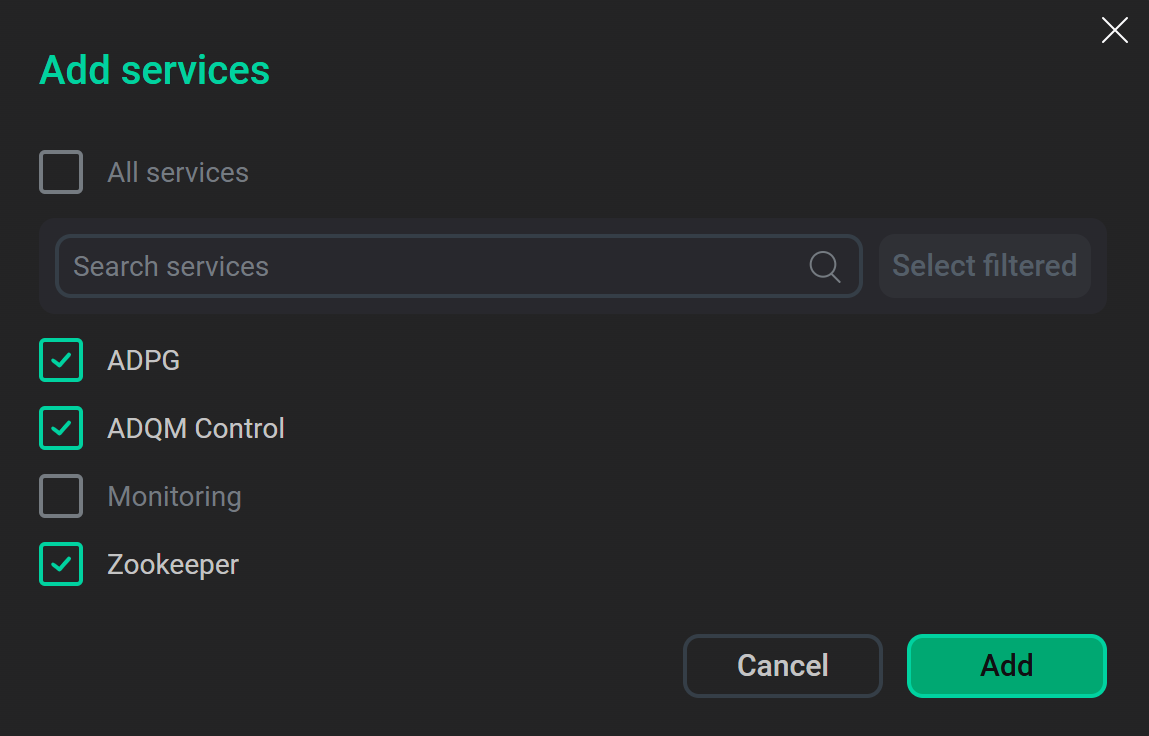

    Select services
    Select services

    The brief description of available services is listed below.

    Services that can be added to the ADQM Control cluster
    Service Mandatory Purpose

    ADQM Control

    Yes

    Main service that provides the full functionality of the ADQM Control product

    ADPG

    No

    Arenadata Postgres database to store ADQM Control-specific data

    Zookeeper

    No

    Coordination service to store ADQM Control settings specified on the user side

    Monitoring

    No

    Service for collecting and storing ADQM Control cluster monitoring metrics based on the Prometheus monitoring system and Grafana service

    For an ADQM Control cluster, it is required to select a PostgreSQL database and a ZooKeeper coordination service to store ADQM Control settings. To do this, you can add the ADPG and Zookeeper services to the ADQM Control cluster or specify an external PostgreSQL server and external ZooKeeper cluster through the corresponding settings of the ADQM Control service.

  4. As a result, the added services are displayed on the Services tab.

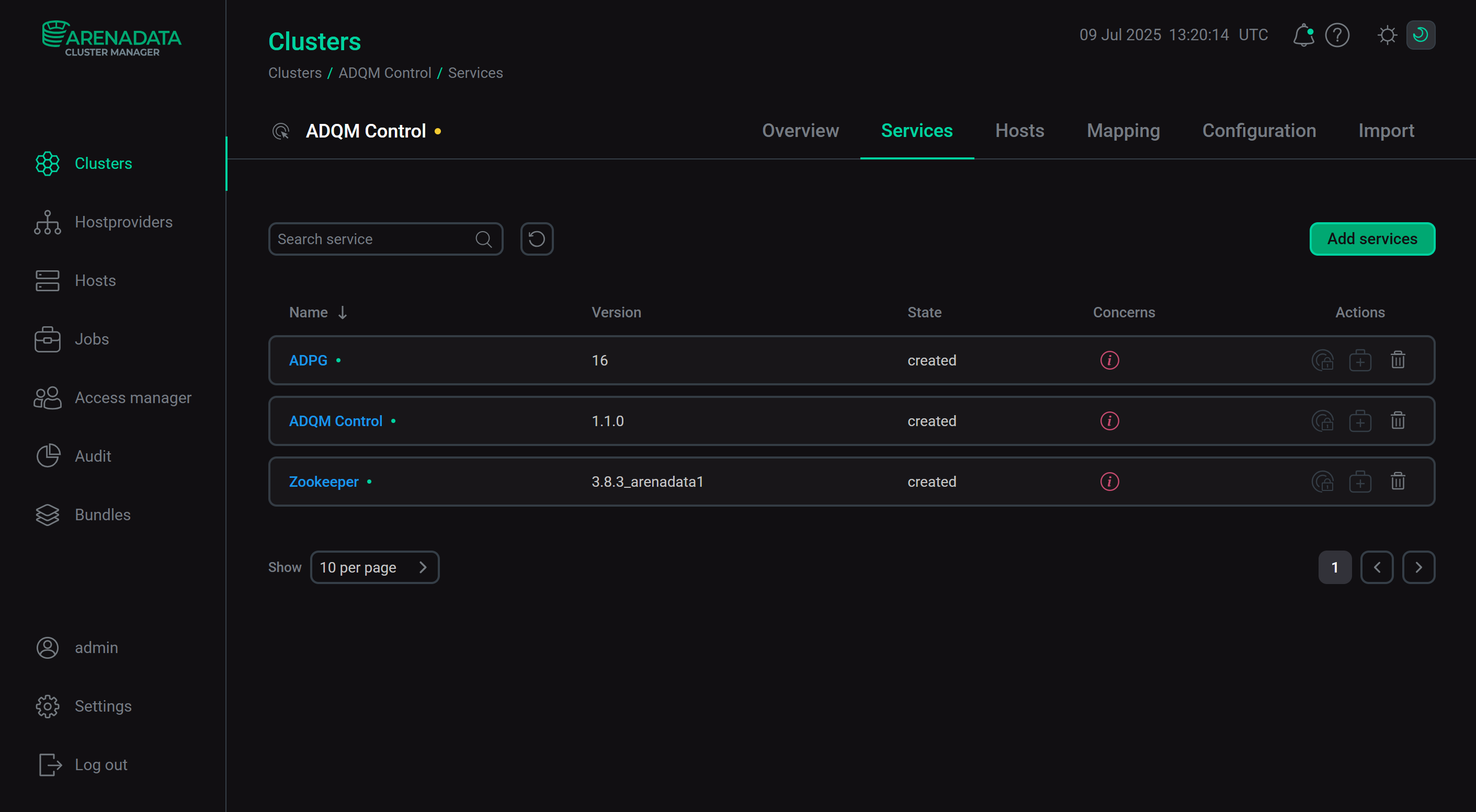

    The result of successful adding services to a cluster
    The result of successful adding services to a cluster
